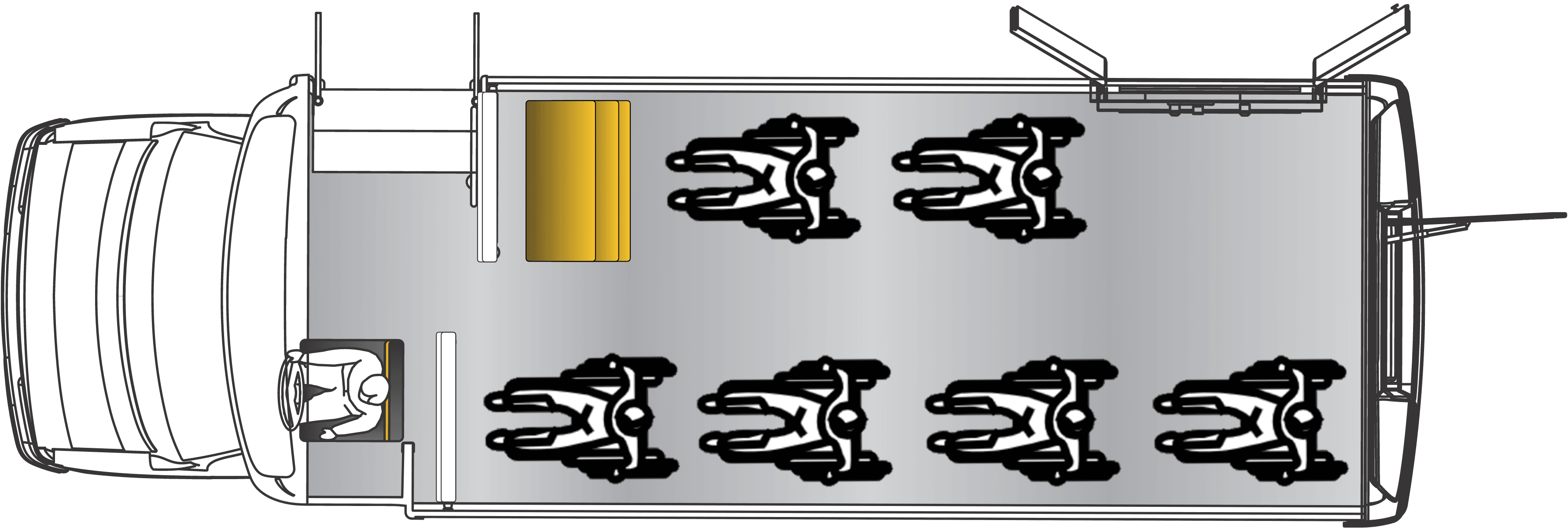

3 passengers + 6 wheelchairs
- Seats3
- Rows4
Loading…
Built on Ford Chassis

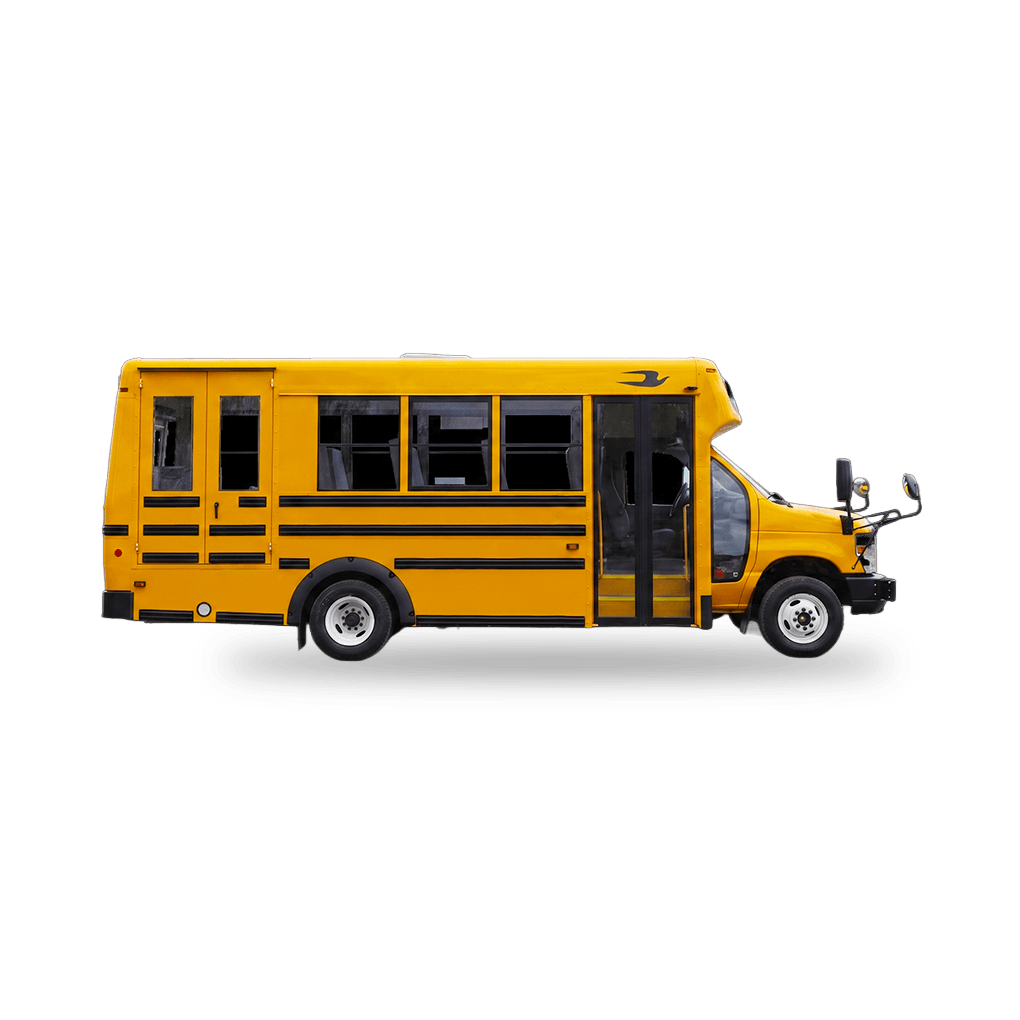

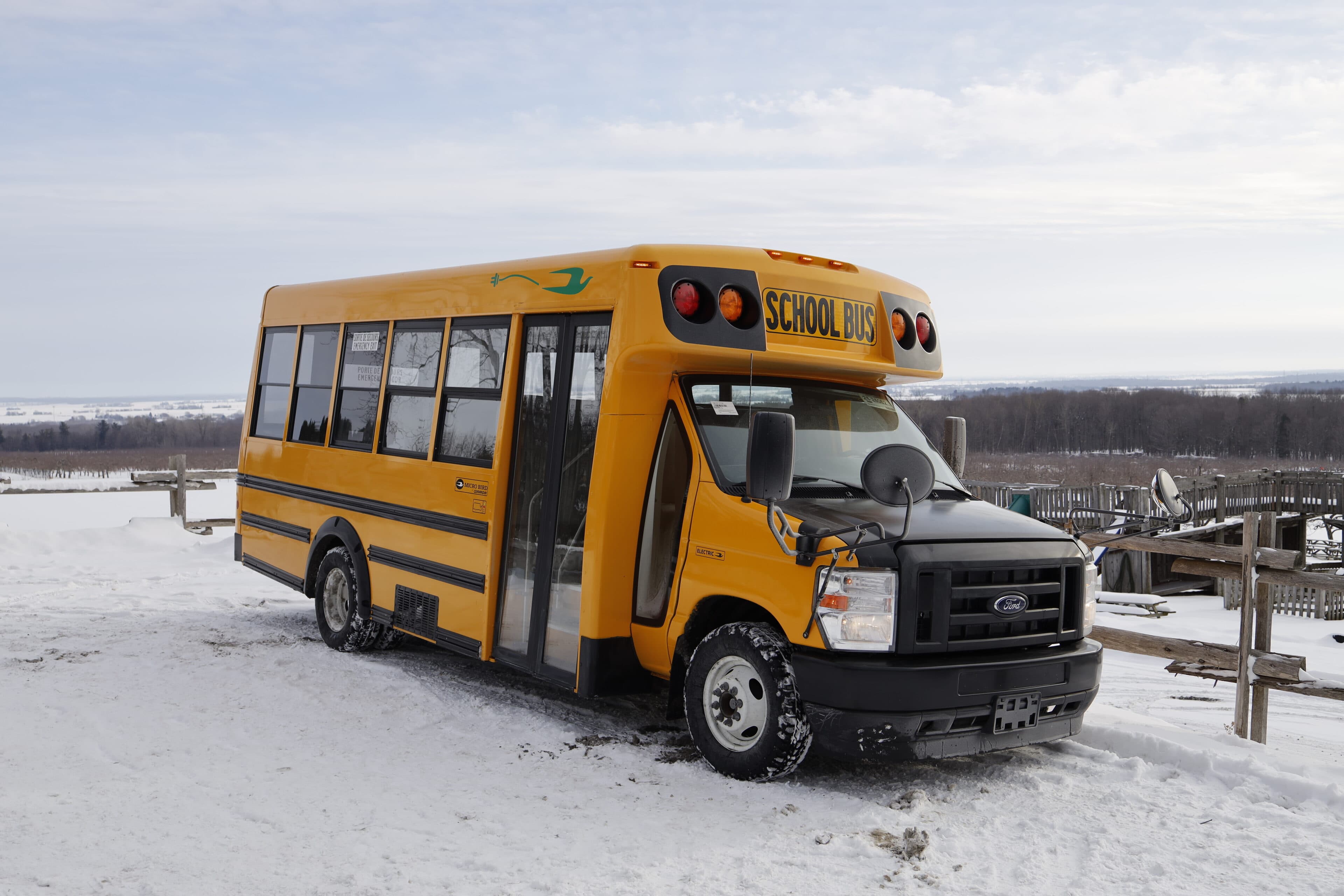

G5 Electric
The G5 Electric brings Micro Bird’s flagship school bus platform to a zero-emission future. Built on the Ford chassis with a newly developed 600V Ecotuned powertrain, direct drive motor, and up to 175 kWh of battery capacity, the G5e delivers 200+ miles of range on a single charge with V2G capability and the same proven body that has made the G5 the industry leader since 2005.
Max Passengers
30
Engine
140/175 kWh
Overall Length
243–320"
Warranty
5 yr
Key Advantages
Why Schools Choose
the G5 Electric
the G5 Electric
Zero emissions, 200+ miles of range, and the same built-to-last G5 body that school districts have trusted since 2005.
Built to Last
One-piece galvanized steel roof bows and aluminum side body panels deliver a structure engineered for rollover protection, longevity, and low repair costs.
Maximum visibility
The fully-glassed entrance door and More-View™ window give drivers an unobstructed view of the loading zone, the most critical safety moment in student transport.
Zero emissions
No exhaust, no toxic emissions, and significantly reduced engine and road noise. A cleaner ride for students and a cleaner footprint for your school district.
200+ miles of range
The 600V Ecotuned powertrain with direct drive motor and up to 175 kWh LFP battery delivers industry-leading range of over 200 miles (320 km) on a single charge. The G5 Electric has enough for the longest routes in any district.
V2G ready
Vehicle-to-Grid capability turns your fleet into an energy asset. Send power back to the grid during peak hours and reduce your district’s energy costs.
Lower operating costs
No oil changes, no engine maintenance, and reduced brake wear through regenerative braking. Fewer service intervals, more time on the road.
Features and technology
Engineered for excellence
Every detail of the G5 Electric is designed to deliver zero-emission performance without compromising the safety, durability, and passenger comfort the G5 has been known for since 2005.
Visibility That Saves Lives
The G5 Electric features our More-View™ window design and fully-glassed entrance door, giving drivers the clearest possible view of students at the most critical moments.
-
More-view™ window
Unobstructed panoramic view of the road and loading zone
-

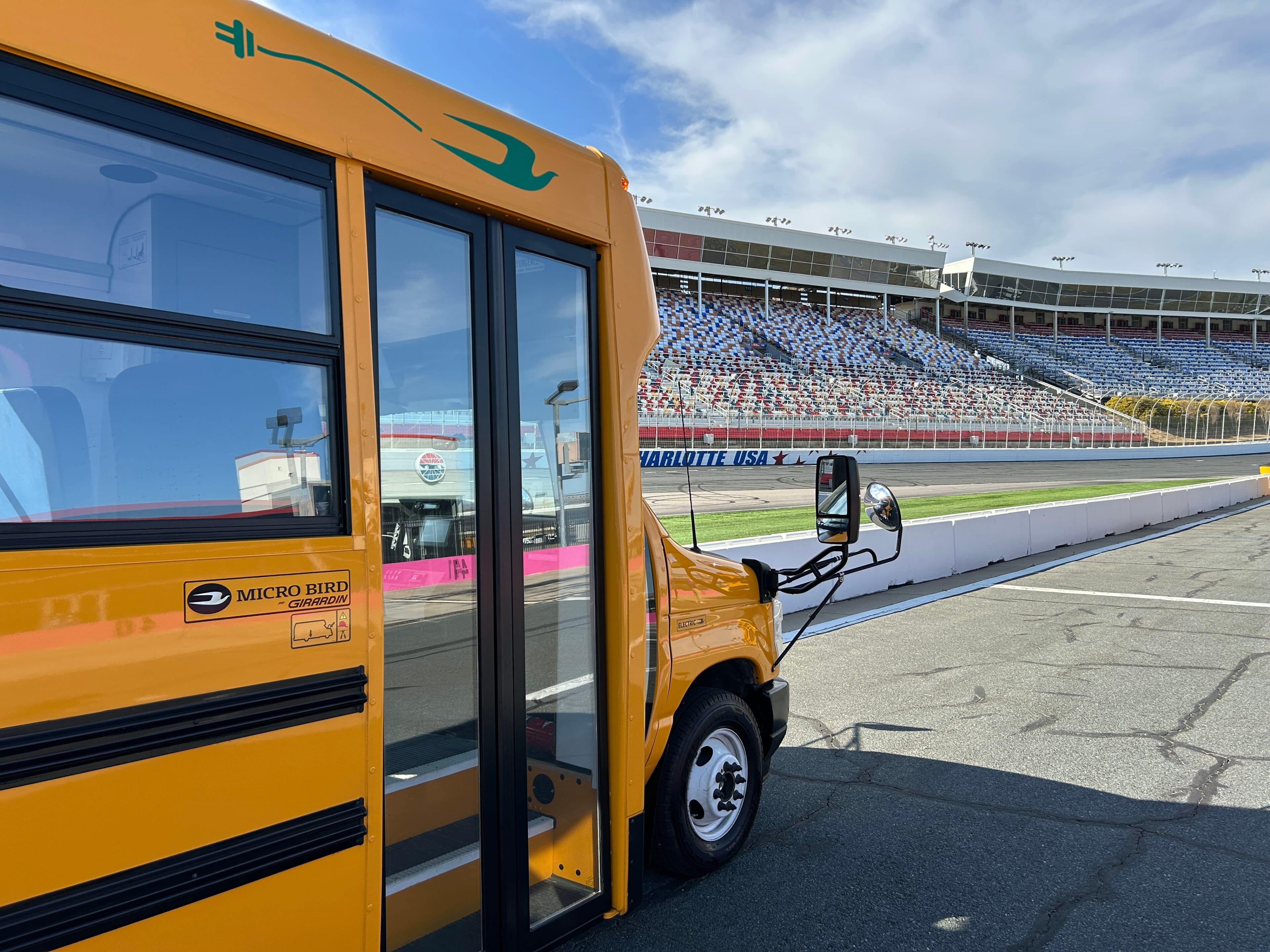

Fully-glassed entrance door
Maximum visibility during student boarding and alighting
-
Standard 32″ electric double-opening door
Wider entry for all students, including those with mobility needs (wider than the T-Series 24″ door)
-
Double-leaf wheelchair doors
Protection on both sides of the lift, superior weather seal and door strength, a Micro Bird exclusive
Built to Outlast
The G5 body is engineered from the ground up for structural integrity and long-term durability. It’s built to serve school districts for years without excessive maintenance.
-
One-piece galvanized steel roof bows
Enhanced safety and rollover protection throughout the structure
-
Aluminum side body panels
Longevity and low repair costs over the vehicle’s lifetime
-
Completely sealed floor
Keeps dust, moisture, and noise outside the passenger compartment
-
Gravel shield
Added body protection and increased vehicle longevity
The Future of School Transportation, Today
The G5 Electric is powered by a next-generation 600V Ecotuned powertrain engineered to set the highest standards for the North American Type A electric school bus market.
-
600V ecotuned powertrain
Next-generation architecture for fast charging and maximum efficiency
-
Direct drive motor
Smooth, strong acceleration with no transmission wear
-
140 or 175 kWh LFP battery
Lithium iron phosphate chemistry for long cycle life and thermal stability
-
200+ miles of range (320 km)
Industry-leading range on a single charge, enough for any school district route
-
Level 2 (19.2 kW) and level 3 DCFC (100 kW) charging
Full charge overnight or fast charge between runs
-
V2G ready
Vehicle-to-Grid capability for energy cost optimization and grid support
Ready for Every Student
The G5 Electric is fully equipped to serve students of all mobility levels, with Micro Bird-exclusive dual lift door design for safer, wider access.
-
ADA-compliant wheelchair lifts
Smooth-operating lifts from Braun and Ricon
-
Dual lift doors (Micro Bird Exclusive)
Better access, wider entry, shorter opening radius for safer handling
-
Slide n’click and floor pocket anchorages
Safe, secure transport for special needs students
-
Integrated child seats and 3-point seat belts
Available for enhanced safety and versatility (required by FMVSS 208 for GVWR under 10,000 lbs)
Technical Data
Specifications
Comprehensive technical data for the G5 Electric school bus.
Chassis
- Chassis
Ford
- Wheelbase
138″ – 177″ (Ford) and 139″ – 177″ (GM)
- Engine
Electric, Ecotuned direct drive motor · 600V
- Transmission
Direct drive (single speed)
- GVWR
Up to 14,500 lbs
- Fuel Tank
Battery electric vehicle

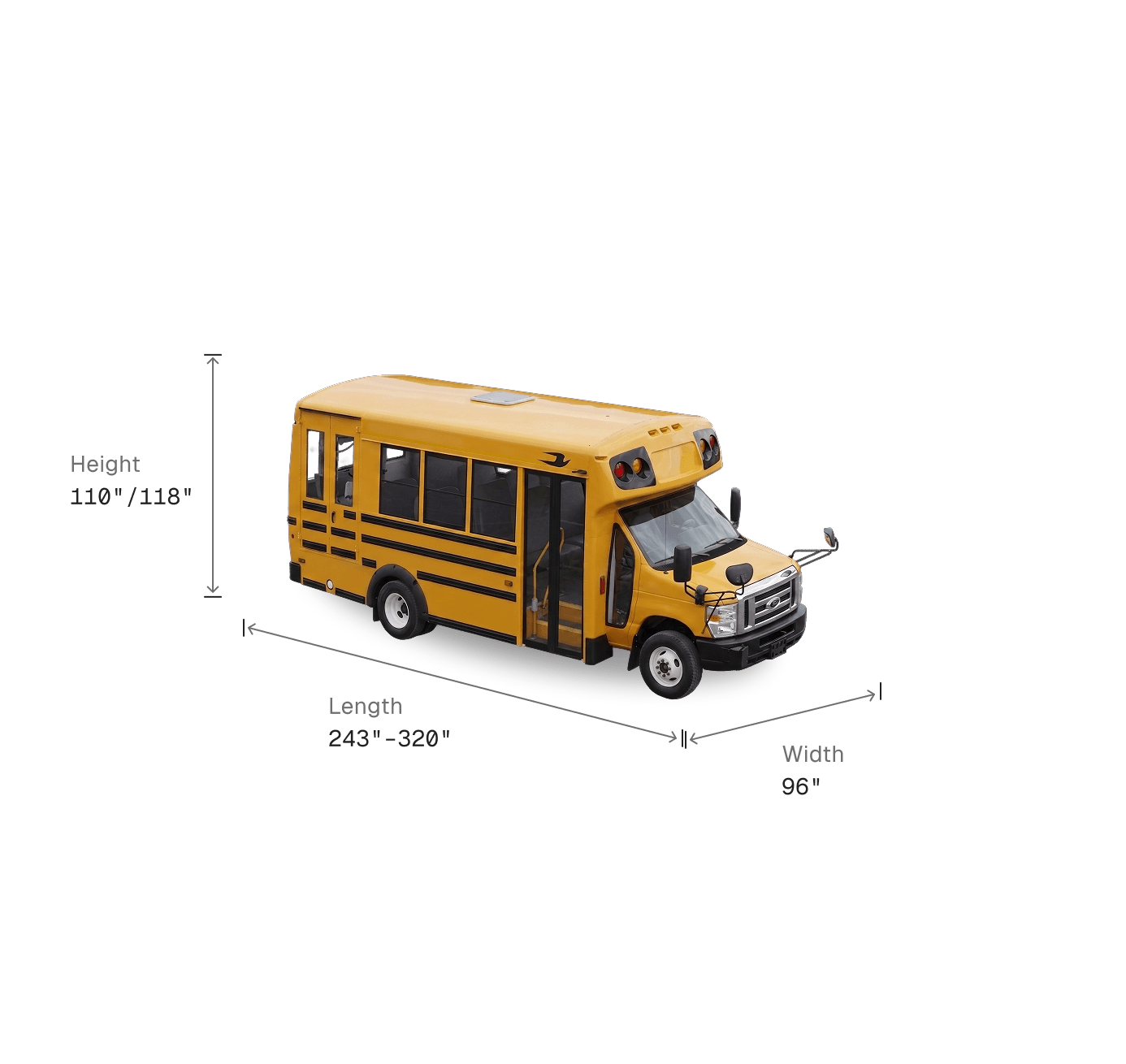

Body
- Overall Length
243″ – 320″
- Overall Width
96″
- Overall Height
110″ / 118″
- Passenger Capacity
Up to 30
- Roof Structure
One-piece galvanized steel bows
- Side Panels
Aluminium
Safety
- Windshield
More-View™ panoramic design: fully-glassed entrance door
- Side Impact
Full-length heavy-gauge galvanized steel barriers with integrated seat rail
- Rear Bumper
3/16″ × 9.5″ with 12″ wrap around
- Fuel Filler
- Warranty
5 years/160,000 km body and 5 years/60,000 miles EV systems and battery
Floor Plans
Flexible
Configurations
Configurations
A variety of seat plans and configurations are available, including track seating and special needs options.
9 passengers + 3 wheelchairs
- Seats9
- Rows3

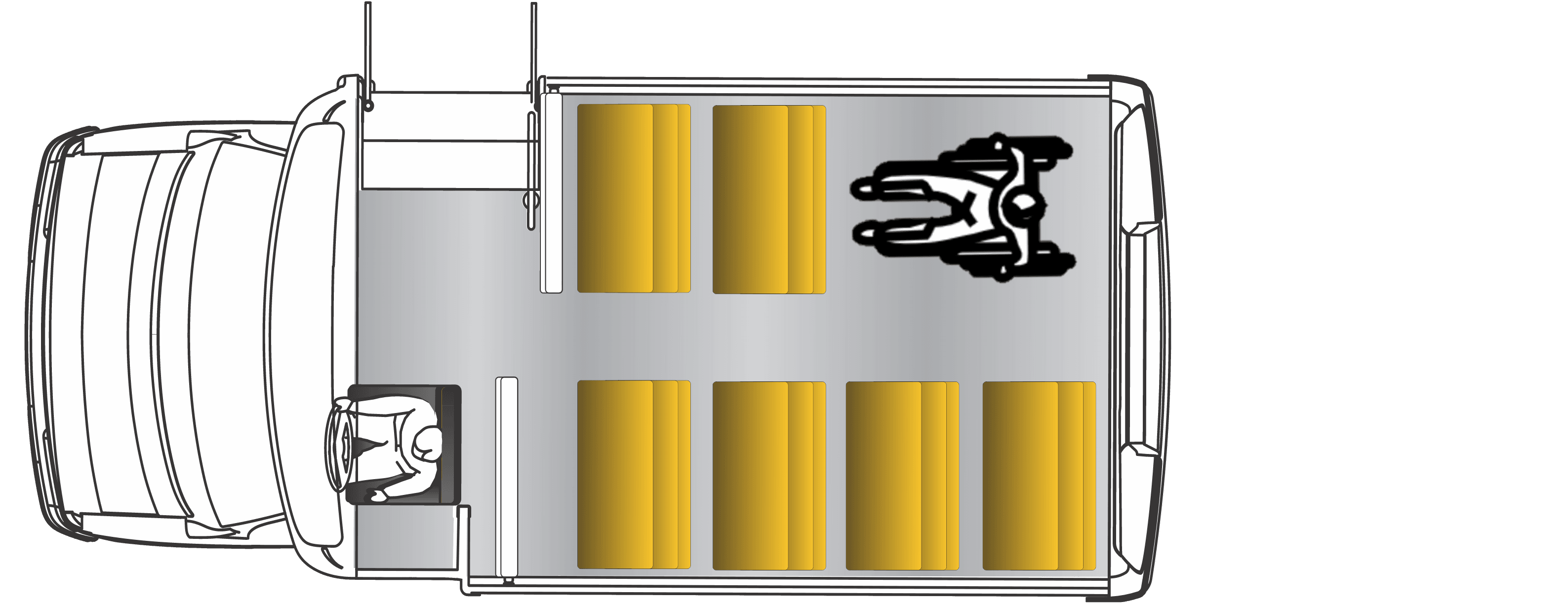

18 passengers + 1 wheelchair
- Seats18
- Rows4

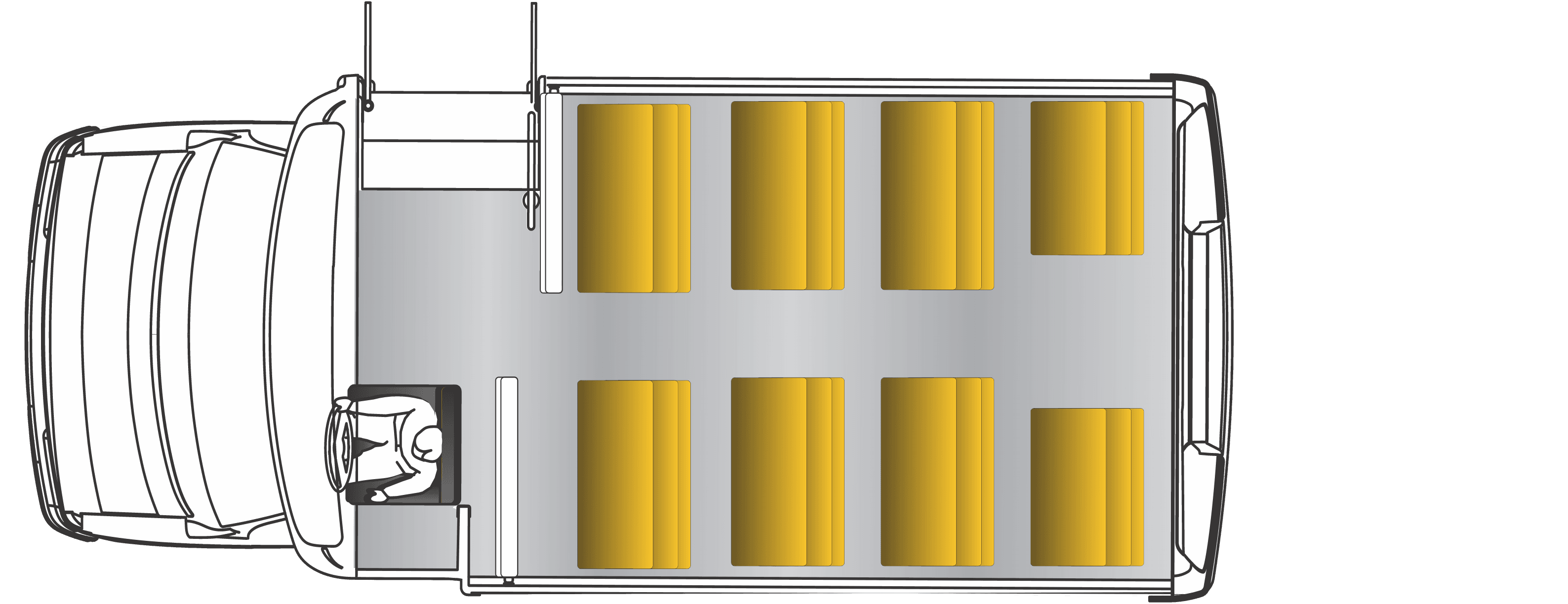

20 passengers
- Seats20
- Rows4
21 passengers + 2 wheelchairs
- Seats21
- Rows5
22 passengers
- Seats22
- Rows4

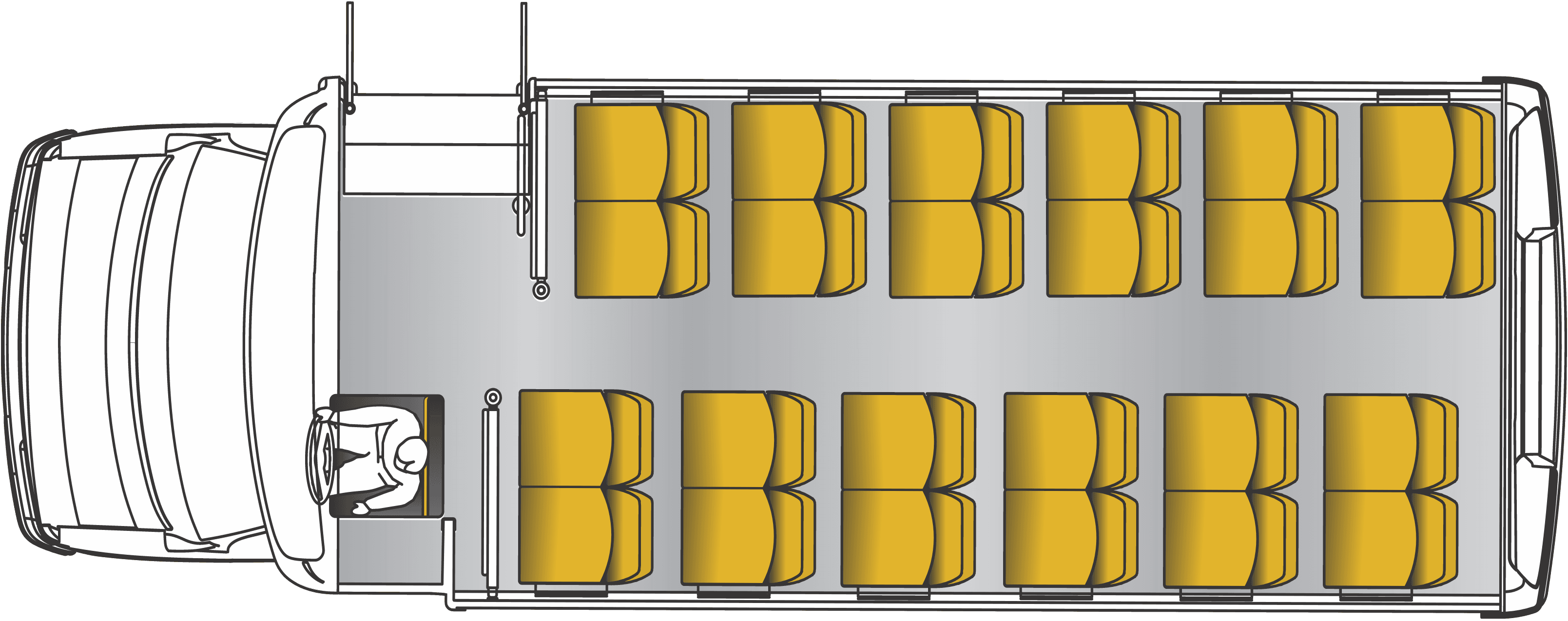

24 passengers
- Seats24
- Rows6

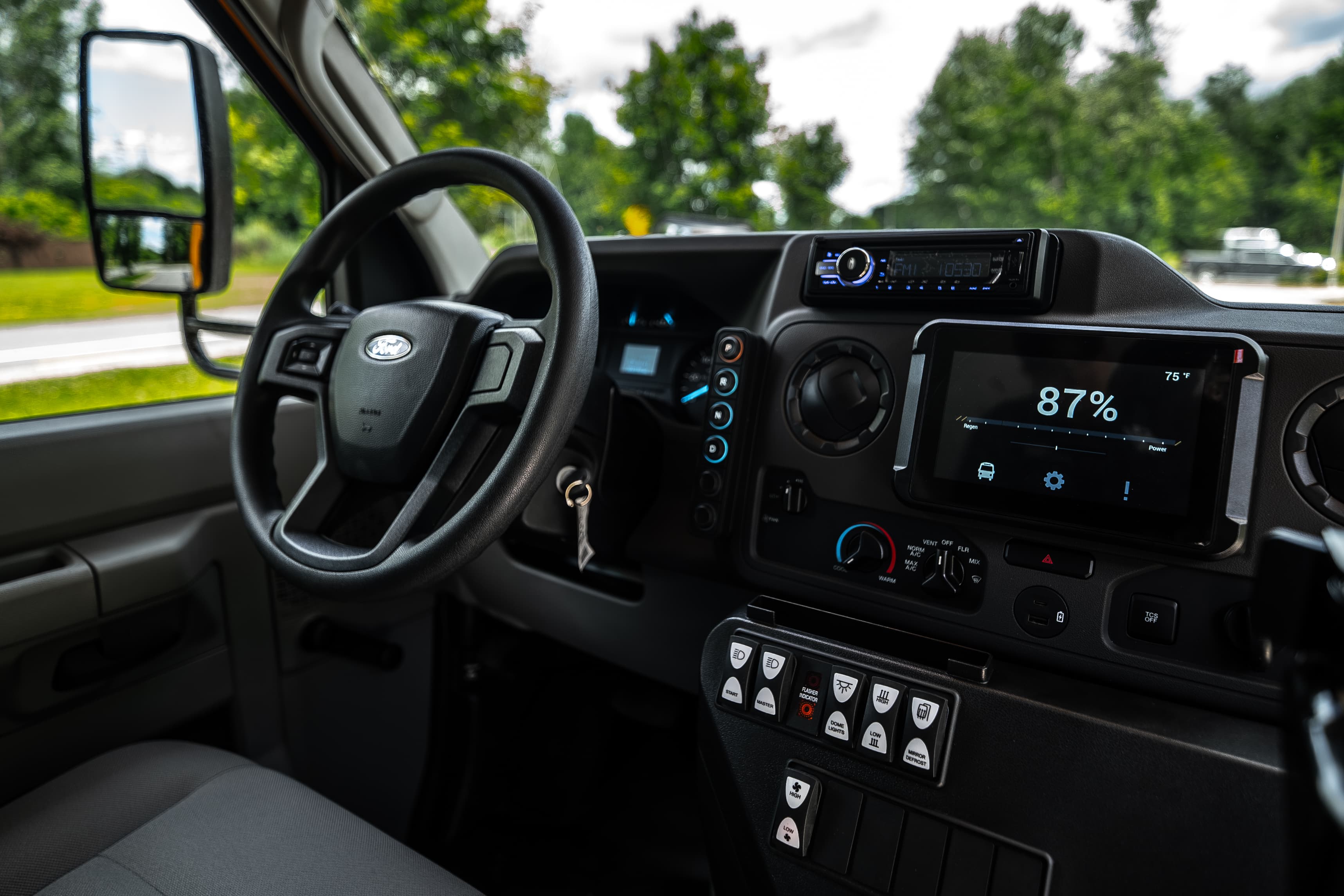

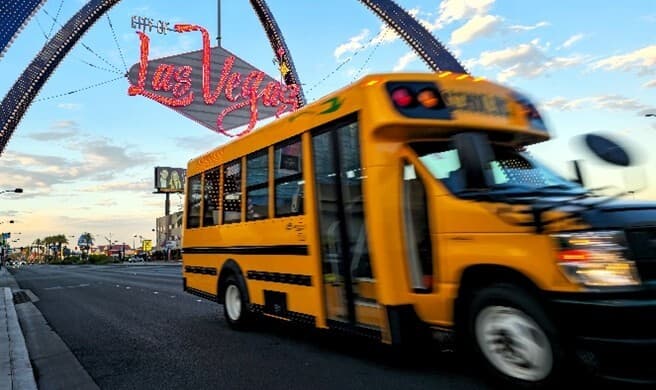

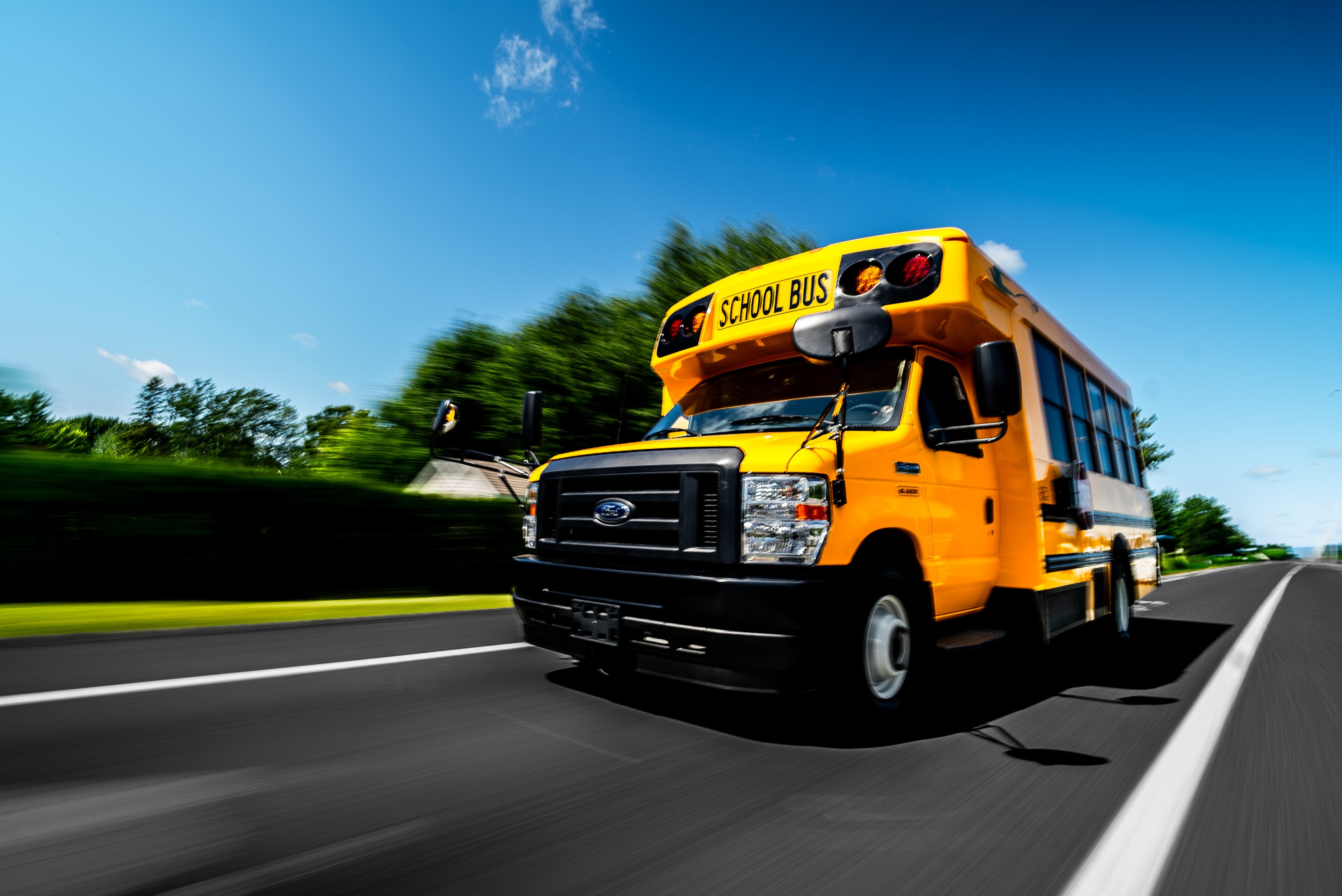

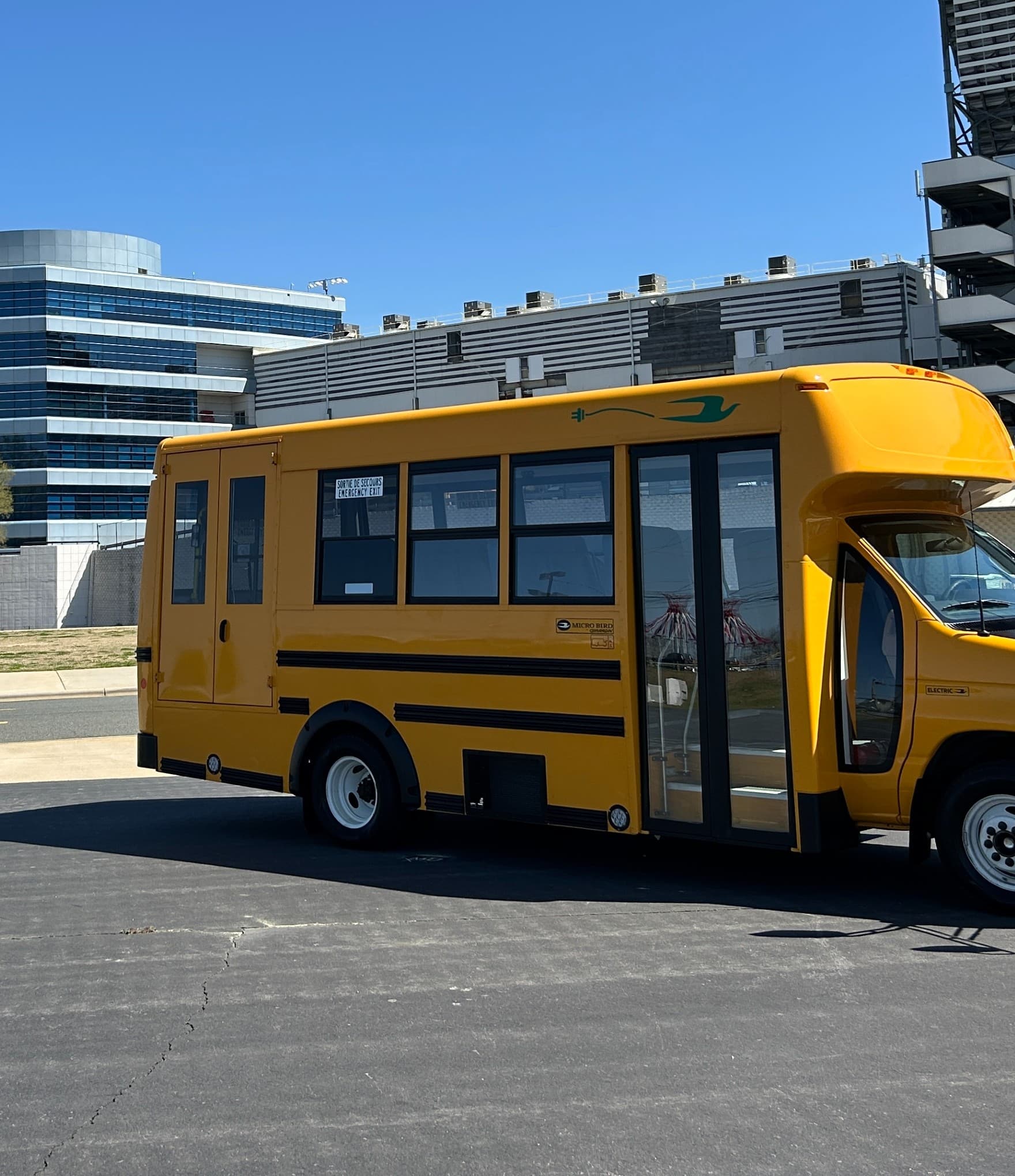

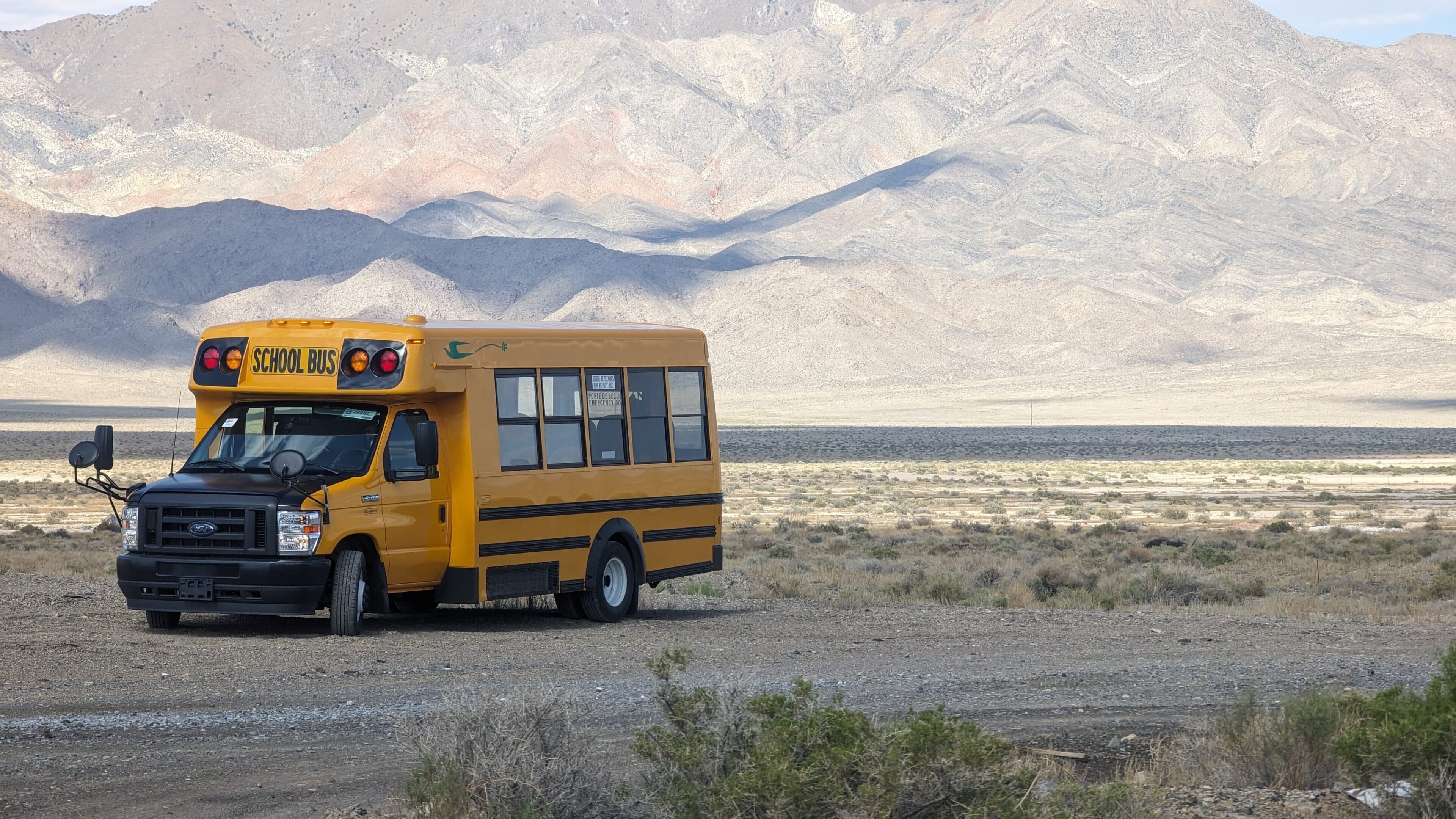

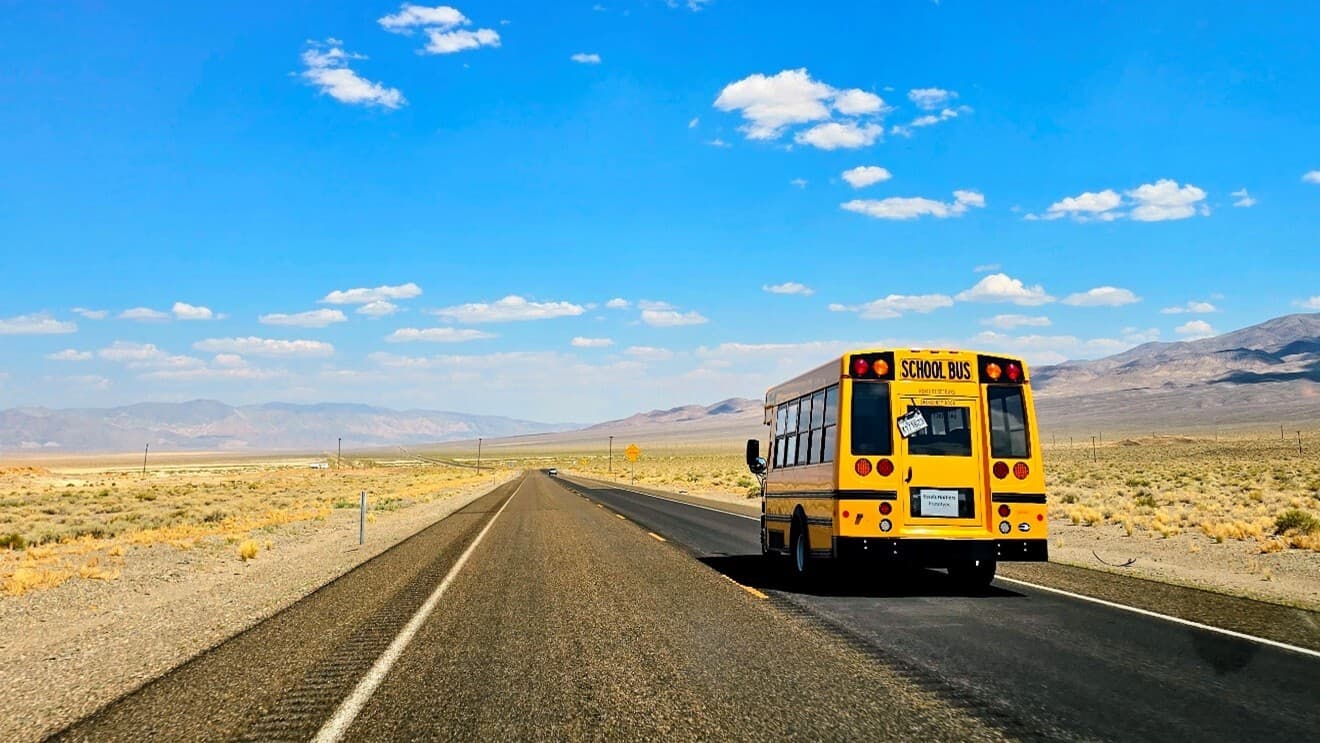

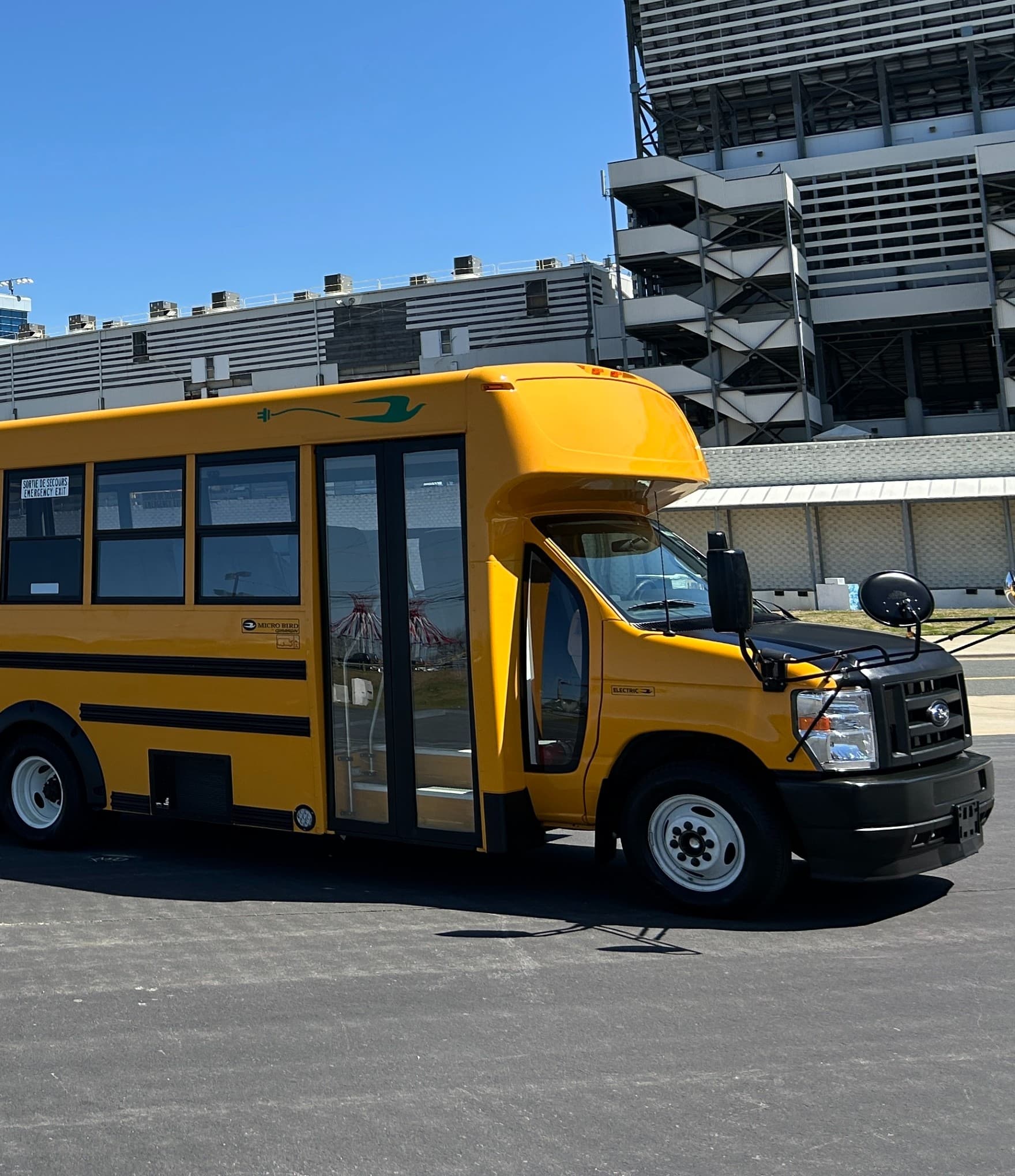

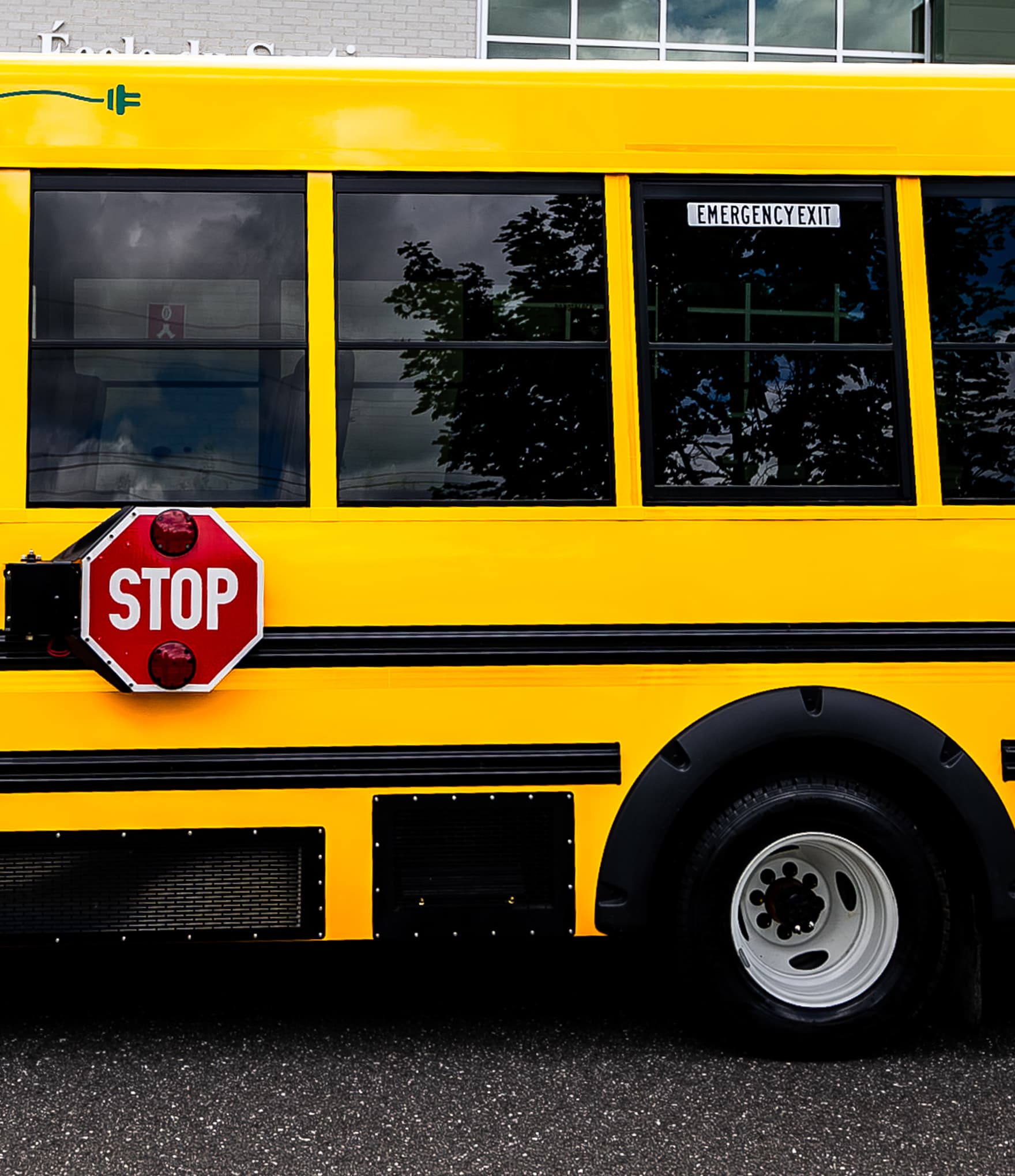

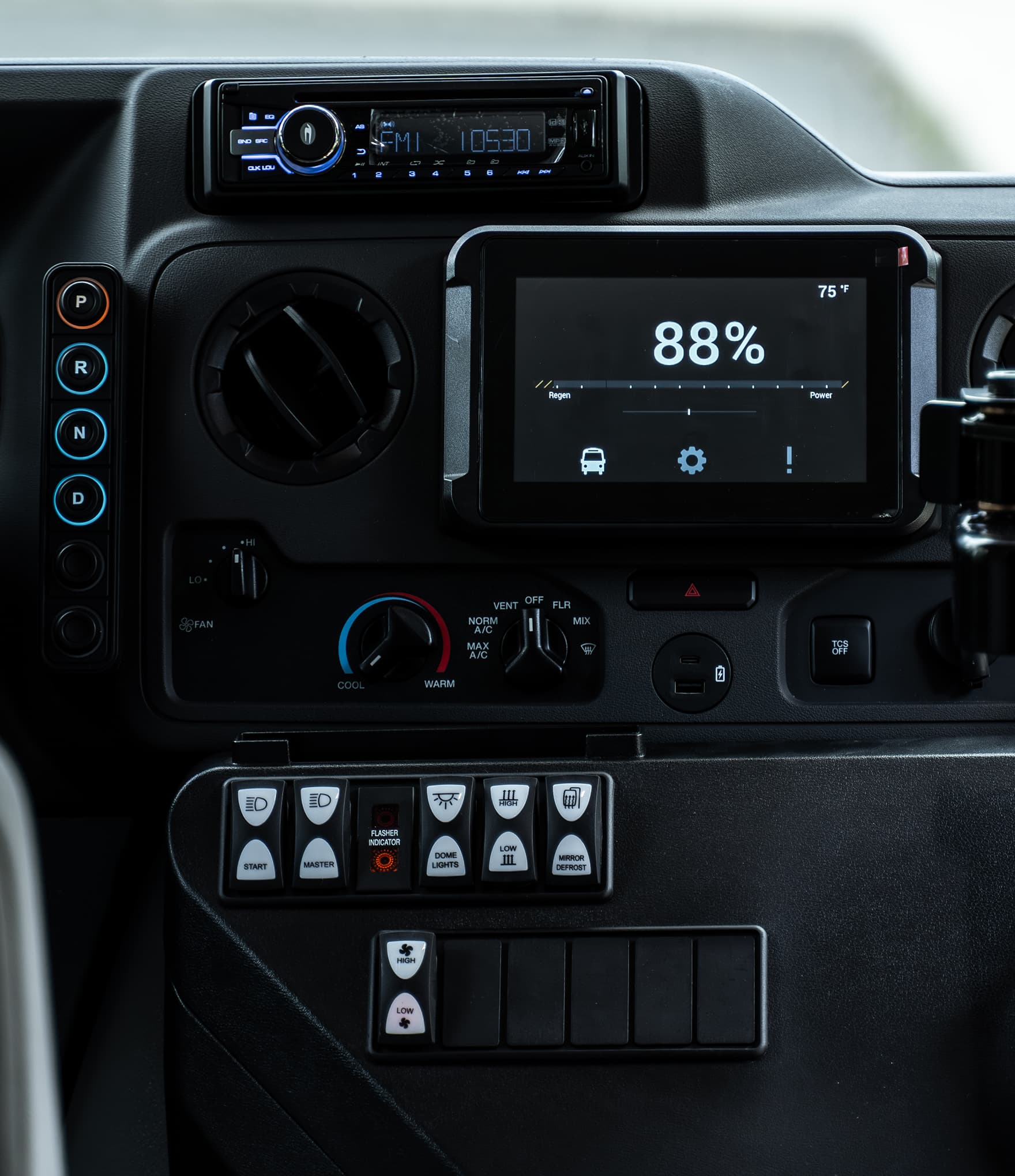

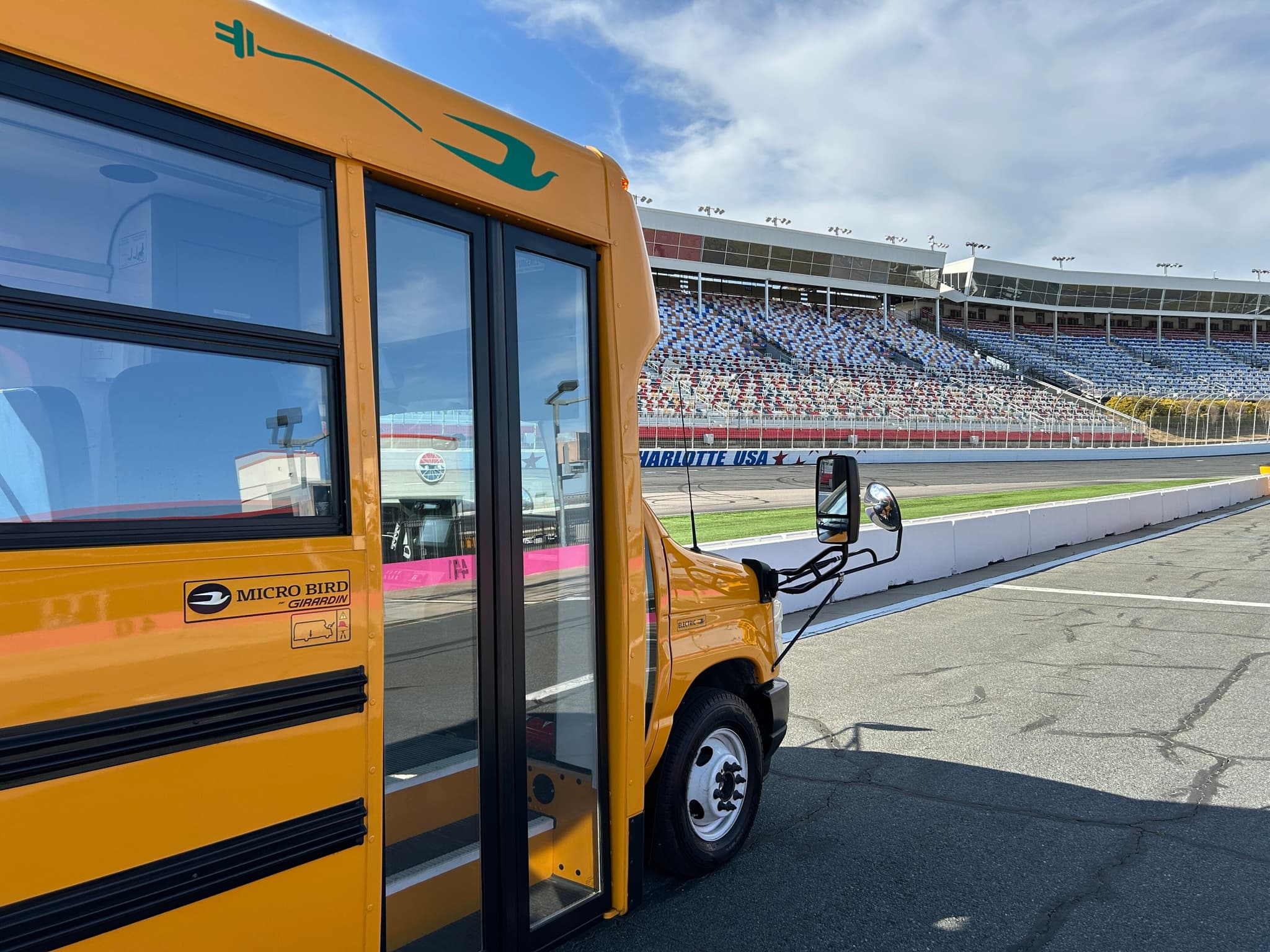

Photo Gallery
See the G5 Electric
In action
In action
Explore interior and exterior details that make the G5 Electric the future of zero-emission school transportation.
