14 passengers
Standard configuration for shuttle and transit applications.
- Seats14
- Rows4
Loading…
Built on Ford & GM Chassis

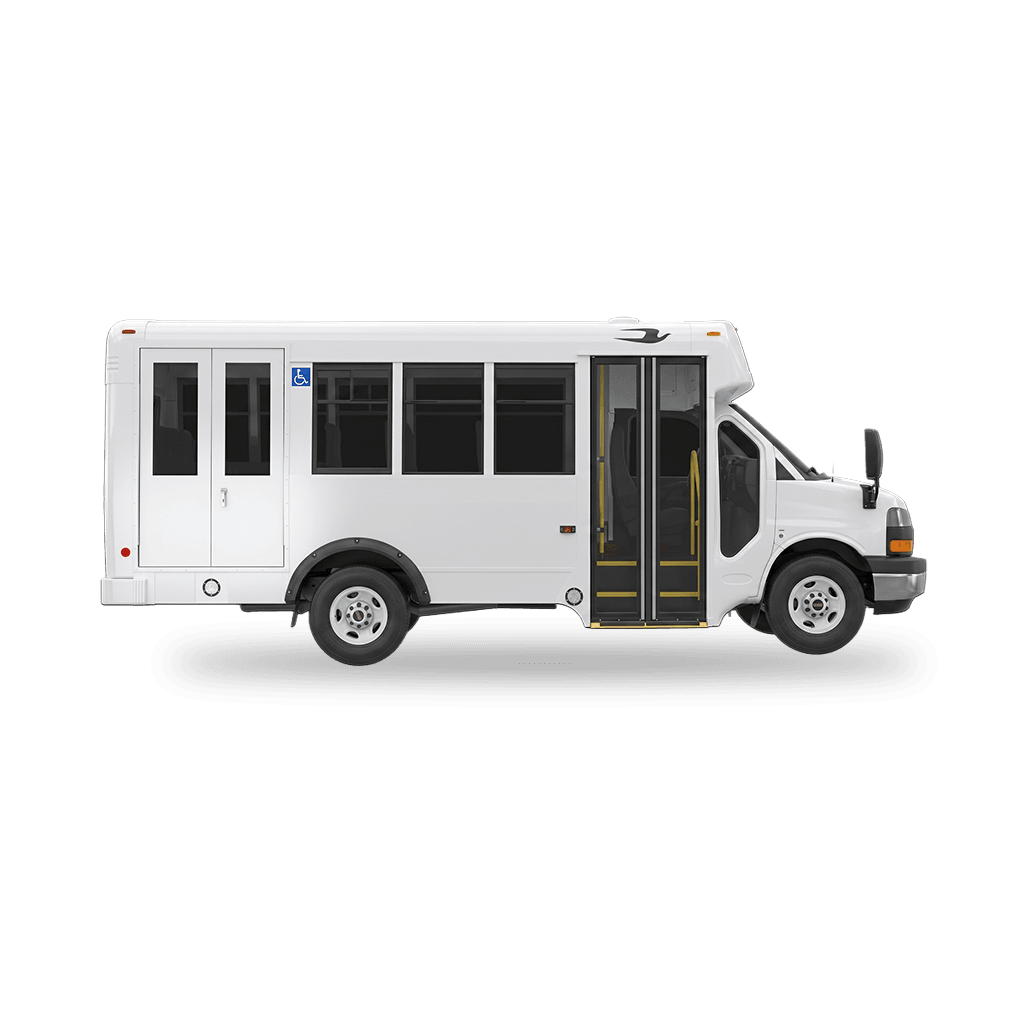

S-Series
The S-Series is built on Micro Bird’s purpose-built product strategy, a narrow-body design engineered for urban routes and tight transit corridors, with exclusive features that directly enhance safety, durability, and long-term value.
Max Passengers
17
V6 Engine
6.8/4,8-6.0L
Overall Length
248"–254"
Body Warranty
5 yr
Key Advantages
Why Operators Choose
the S-Series
the S-Series
Engineered for urban transit and tight corridors with the durability, comfort, and lowest total cost of ownership in its class.
Built to last
One-piece galvanized steel roof bows, heavy-gauge side impact barriers, and aluminum side panels deliver a structure designed to outlast the competition.
Superior insulation and quietness
Fiberglass insulation throughout and insulated hat-shaped roof bows keep the interior quiet, comfortable, and protected from condensation and corrosion.
Enhanced passenger safety
Full-length heavy-gauge steel side impact barriers incorporate the seat rail into the design for an extra layer of structural protection.
Reduced operating cost
Standard LED lighting, double-action energy-absorbing body mounting blocks, and a completely sealed floor minimize maintenance needs and extend vehicle life.
Maximum visibility
A fully-glassed entrance door and the More-View™ window design give drivers an unobstructed view of the road and loading zone.
Built for urban routes
The S-Series narrow body makes it the most maneuverable option in its class. The perfect bus for tight streets, busy transit corridors, and dense urban environments.
Features and technology
Engineered for excellence
Every detail of the S-Series is designed to maximize durability, passenger safety, and long-term value.
Built to Outlast
The S-Series body is engineered from the ground up for structural integrity and long-term durability in demanding commercial environments.
-
One-piece galvanized steel roof bows
Enhanced safety and rollover protection
-
Heavy-gauge steel side impact barriers
Seat rail integrated into the design for extra structural strength
-
Aluminum side body panels
Longevity and low repair costs over the vehicle’s lifetime
-
Completely sealed floor
Keeps dust, moisture, and noise outside the passenger compartment
Smoother. Quieter. More Comfortable.
The S-Series is engineered to reduce noise, vibration, and wear, improving the experience for passengers and extending the life of the vehicle.
-
Double-action energy-absorbing mounting blocks
Absorb road vibration and reduce noise transfer to the interior cabin
-
Fiberglass insulation throughout
Reduces noise transfer and prevents condensation and corrosion
-
Insulated hat-shaped roof bows
Additional thermal and acoustic insulation layer
-
Standard LED exterior lighting
Lower energy consumption and reduced maintenance requirements
See More. Do More.
The S-Series gives drivers the visibility and access they need to operate safely and efficiently throughout the day.
-
More-view™ window design
Unobstructed panoramic view of the road and vehicle environment
-

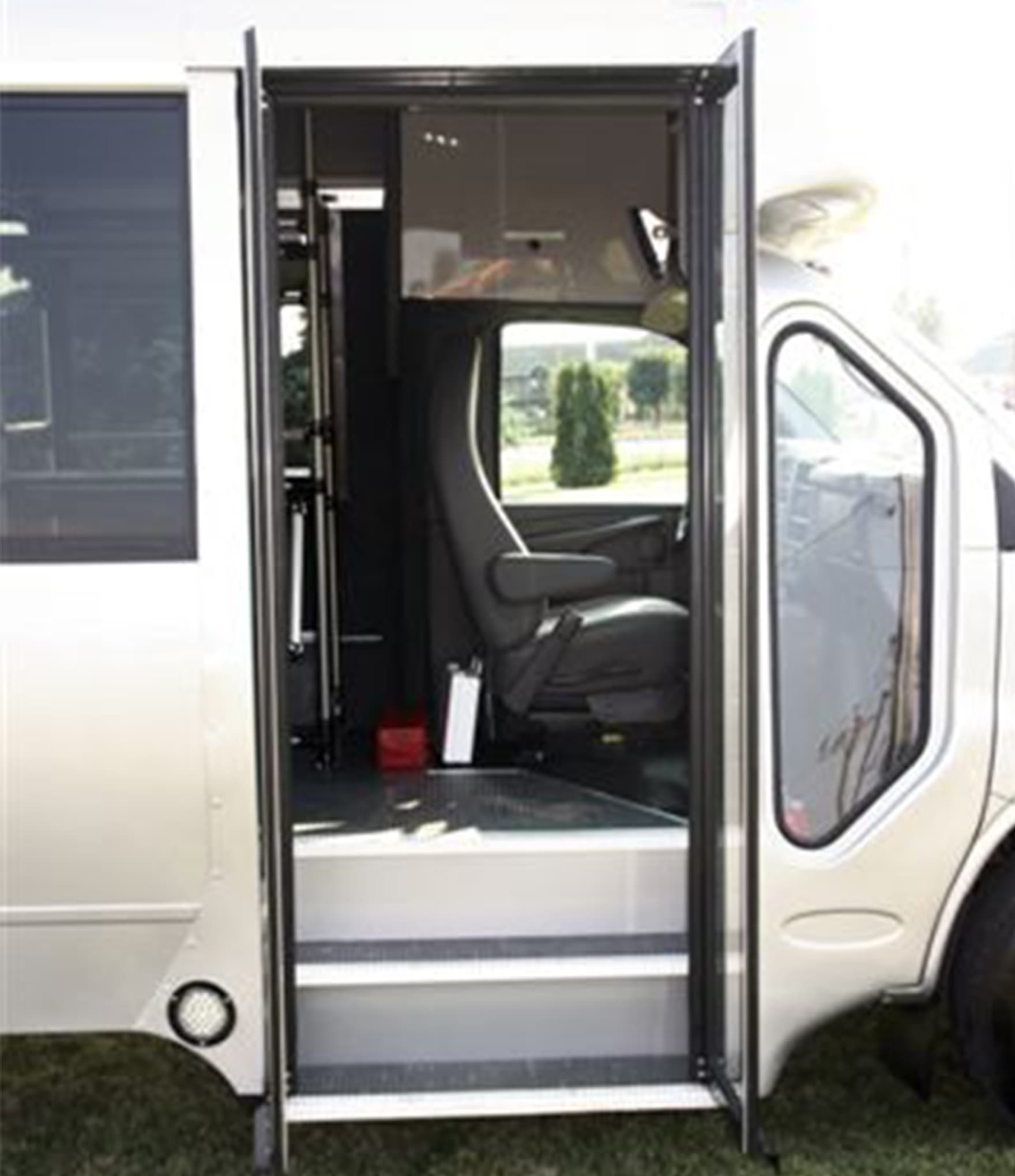

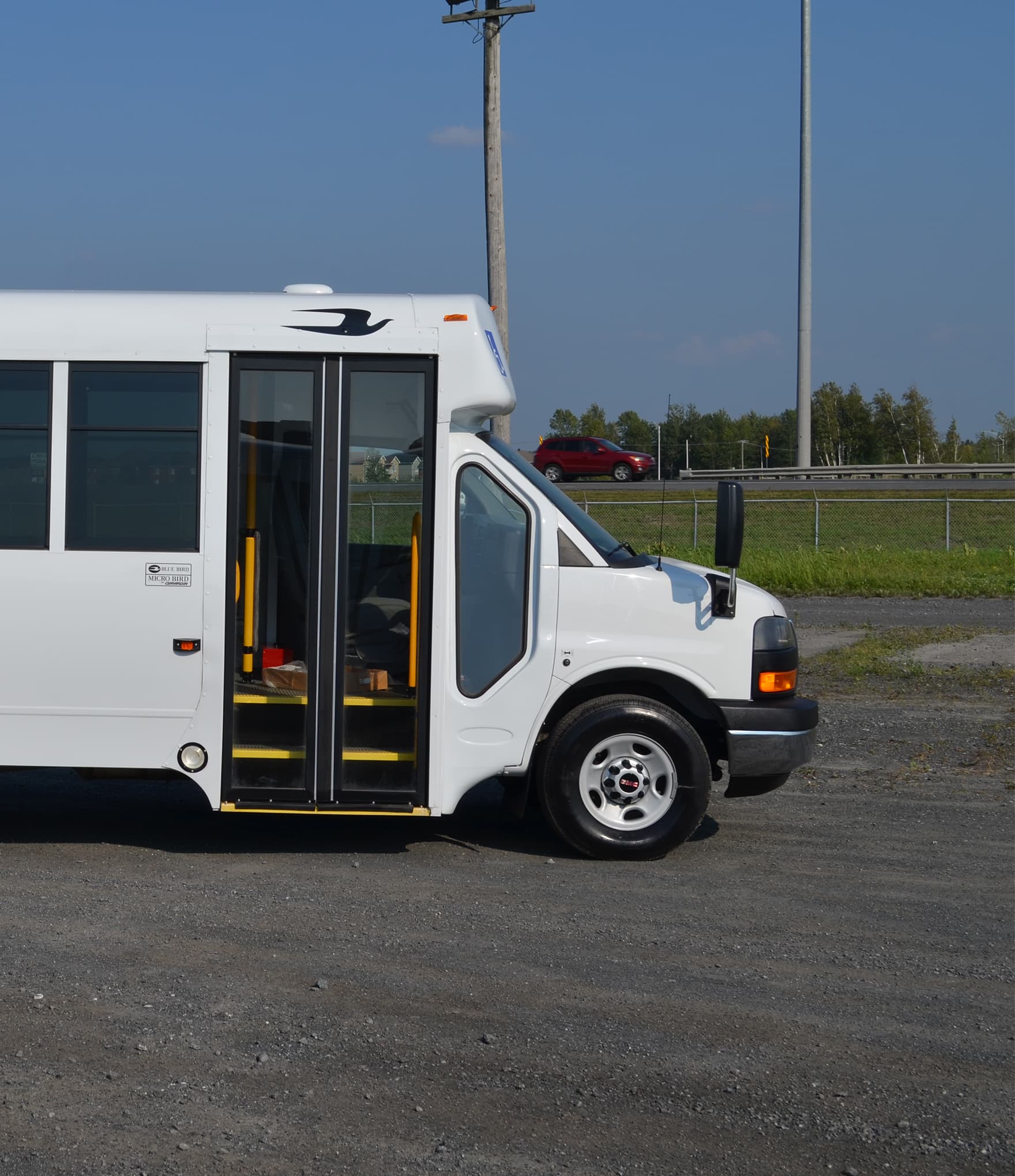

Fully-glassed entrance door
Maximum visibility at the loading zone for safer boarding
-
32″ electric double-opening door
Wide, easy entry for all passengers including those with mobility needs
-
Wide centre aisle
Improved passenger flow and in-cabin comfort
Ready for Every Passenger
The S-Series is fully equipped to serve passengers of all mobility levels, with a complete range of ADA-compliant options available across all configurations.
-

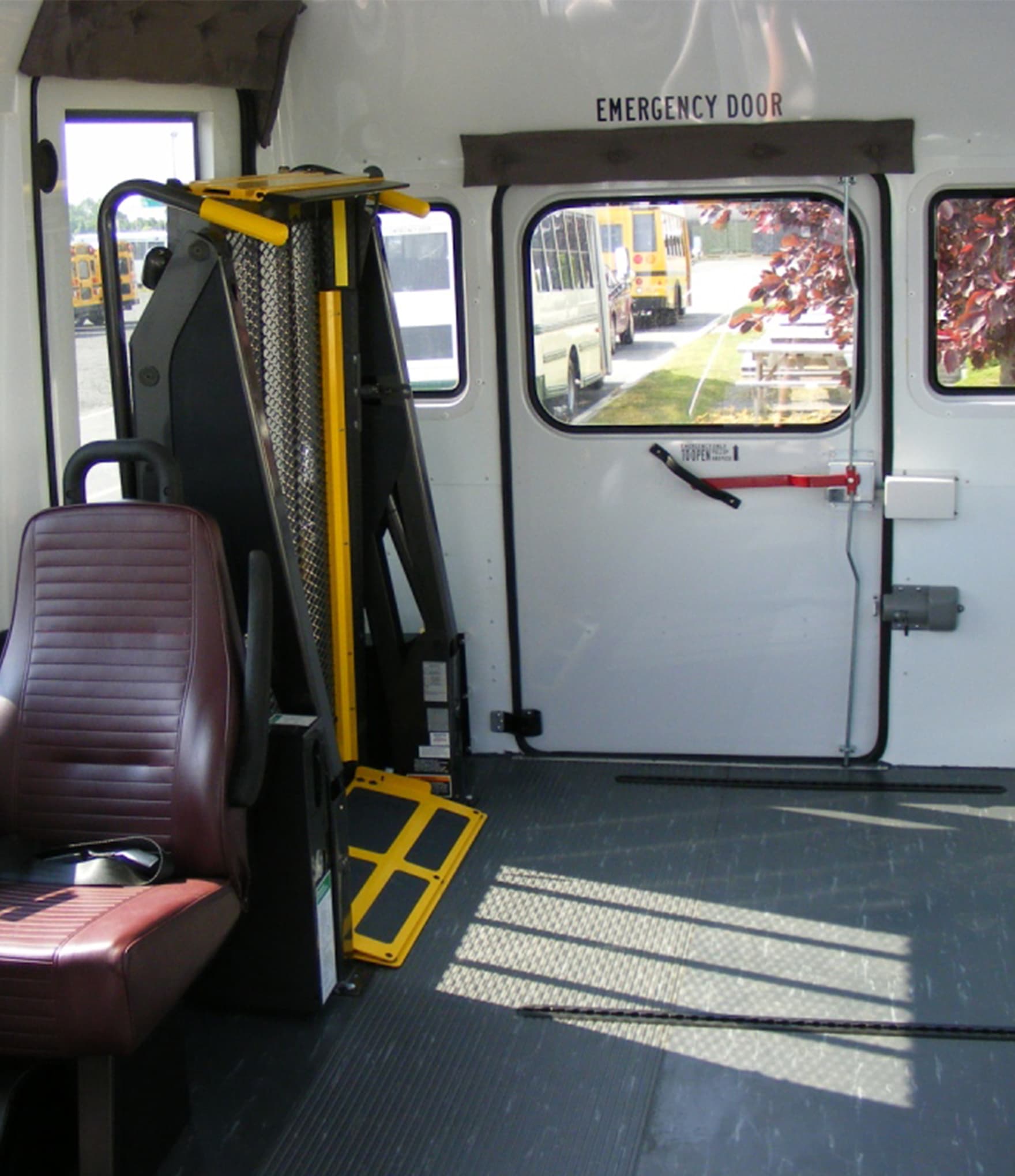

ADA-compliant wheelchair lifts
Smooth-operating lifts from Braun and Ricon
-
Slide N’Click securement
Safe, secure transport for wheelchair passengers
-
Floor pocket anchorages
Additional securement option for special needs passengers
-
Track seating system
Rapid reconfiguration between ambulatory and W/C layouts
Technical Data
Specifications
Comprehensive technical data for the S-Series commercial bus.
Chassis
- Chassis
Ford/GM
- Wheelbase
138″ / 139″
- Engine
6.8L gas/4.8L – 6.0L gas
- Transmission
6-speed AOD
- GVWR
10,050 lbs – 10,100 lbs
- Fuel Tank
33 – 40 gallons

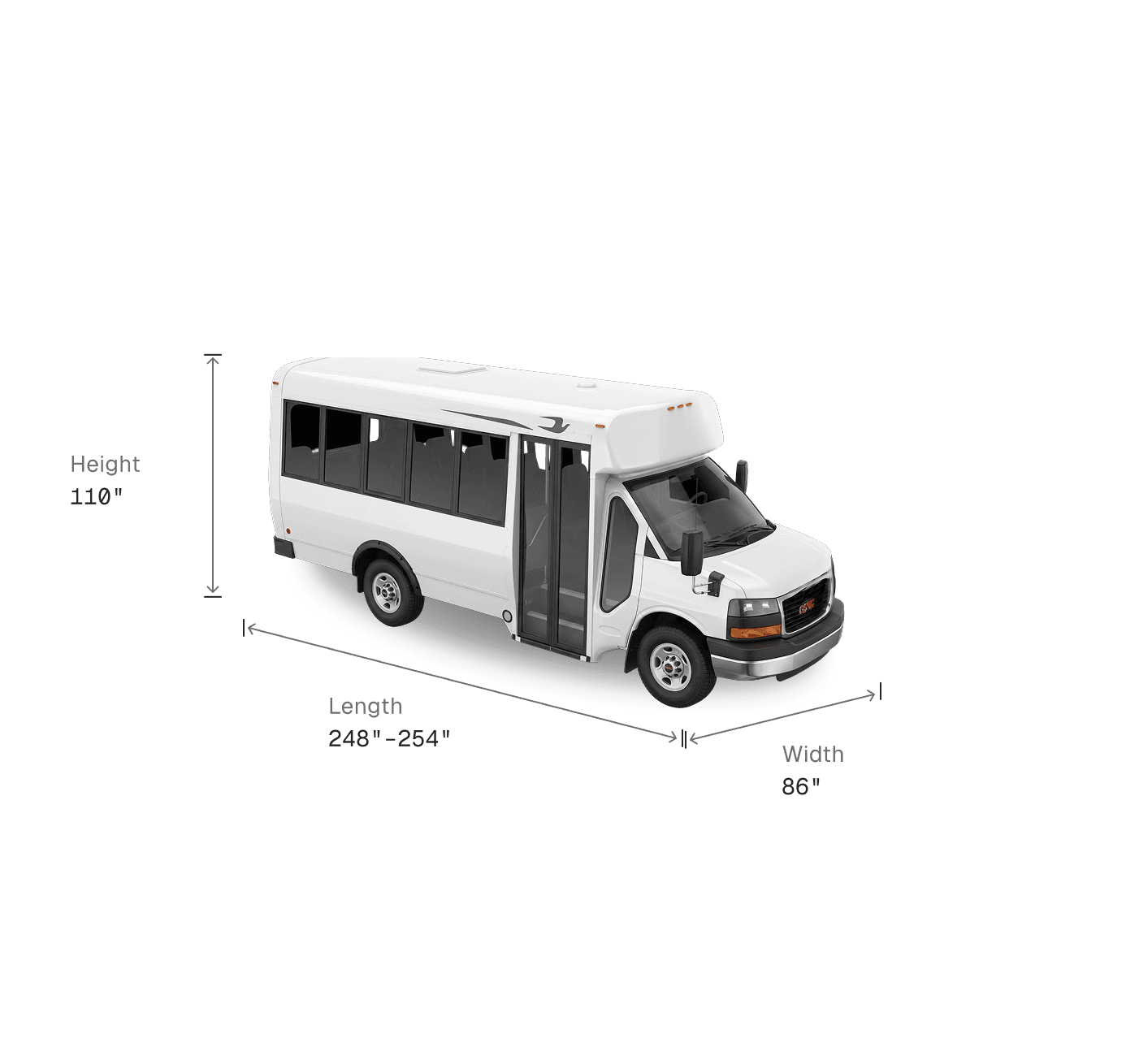

Body
- Overall Length
248″ – 254″
- Overall Width
86″
- Overall Height
110″
- Passenger Capacity
Up to 17
- Roof Structure
One-piece galvanized steel bows
- Side Panels
Aluminium
Safety
- Windshield
More-View™ panoramic design
- Side impact
Full-length heavy-gauge steel barriers with integrated seat rail
- Rear bumper
- Fuel filler
- Warranty
5 years body

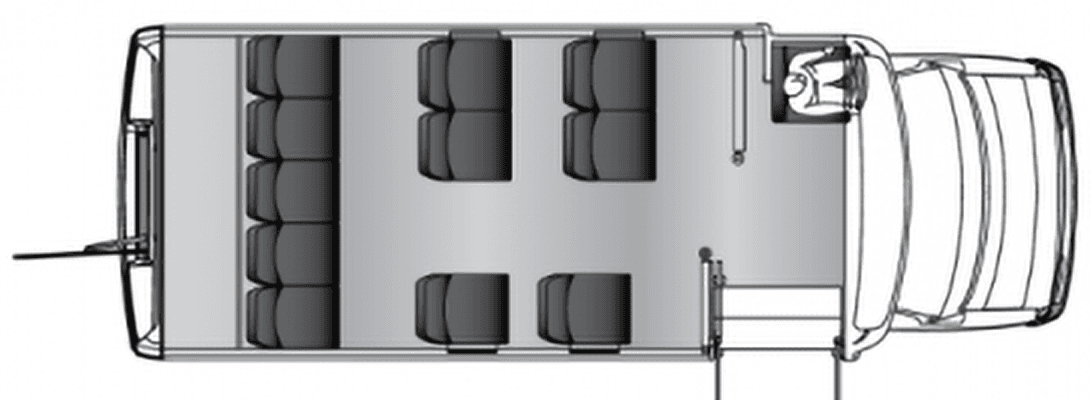

Floor Plans
Flexible
Configurations
Configurations
A variety of seat plans and configurations are available, including track seating and special needs options.
11 passengers + rear luggage
Standard seating with a dedicated rear luggage compartment.
- Seats11
- Rows3

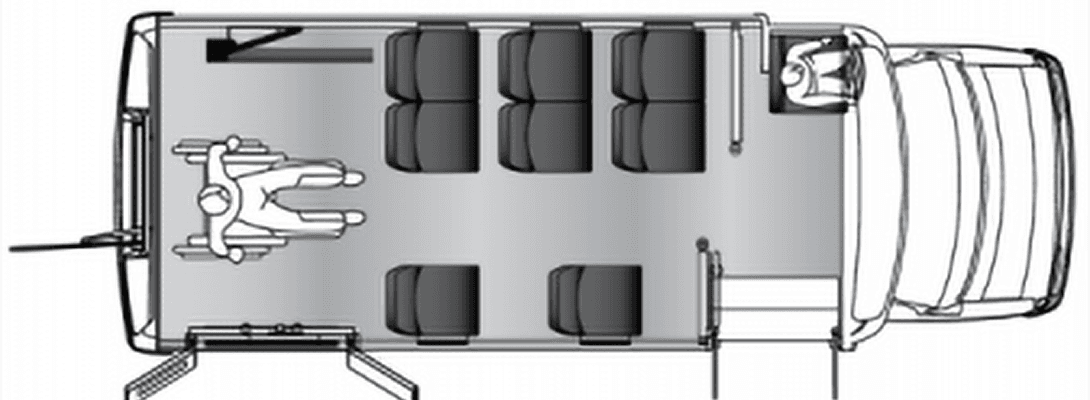

8 passengers + 1 W/C
Flexible accessibility layout with one wheelchair position.
- Seats8
- Rows4
12 passengers + rear door
Standard configuration for shuttle and transit applications with a rear door.
- Seats12
- Rows4
Industries
Built for
Your Application
The S-Series narrow body makes it the smart choice for urban transit, public transport corridors, and any operation where maneuverability matters.

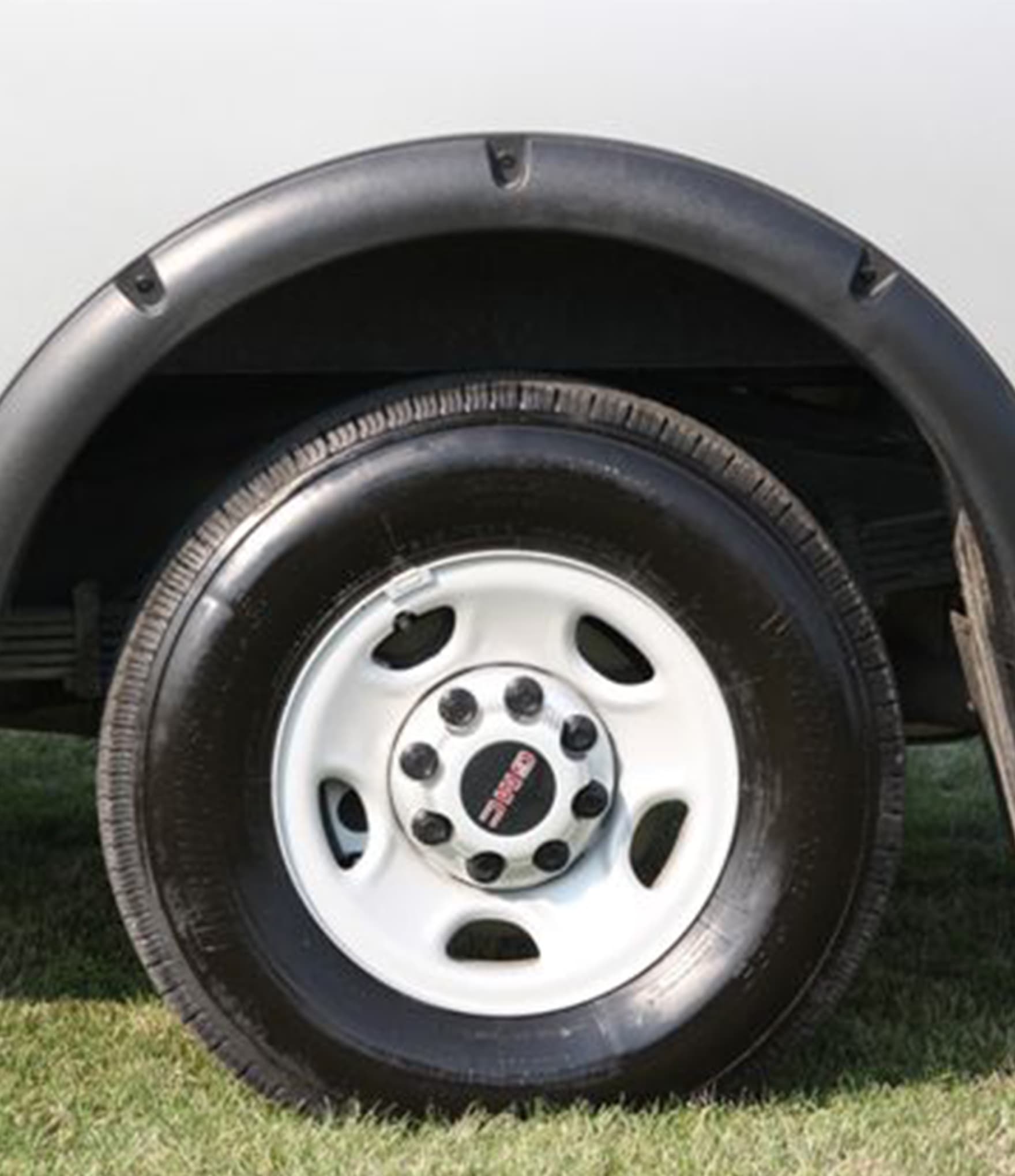

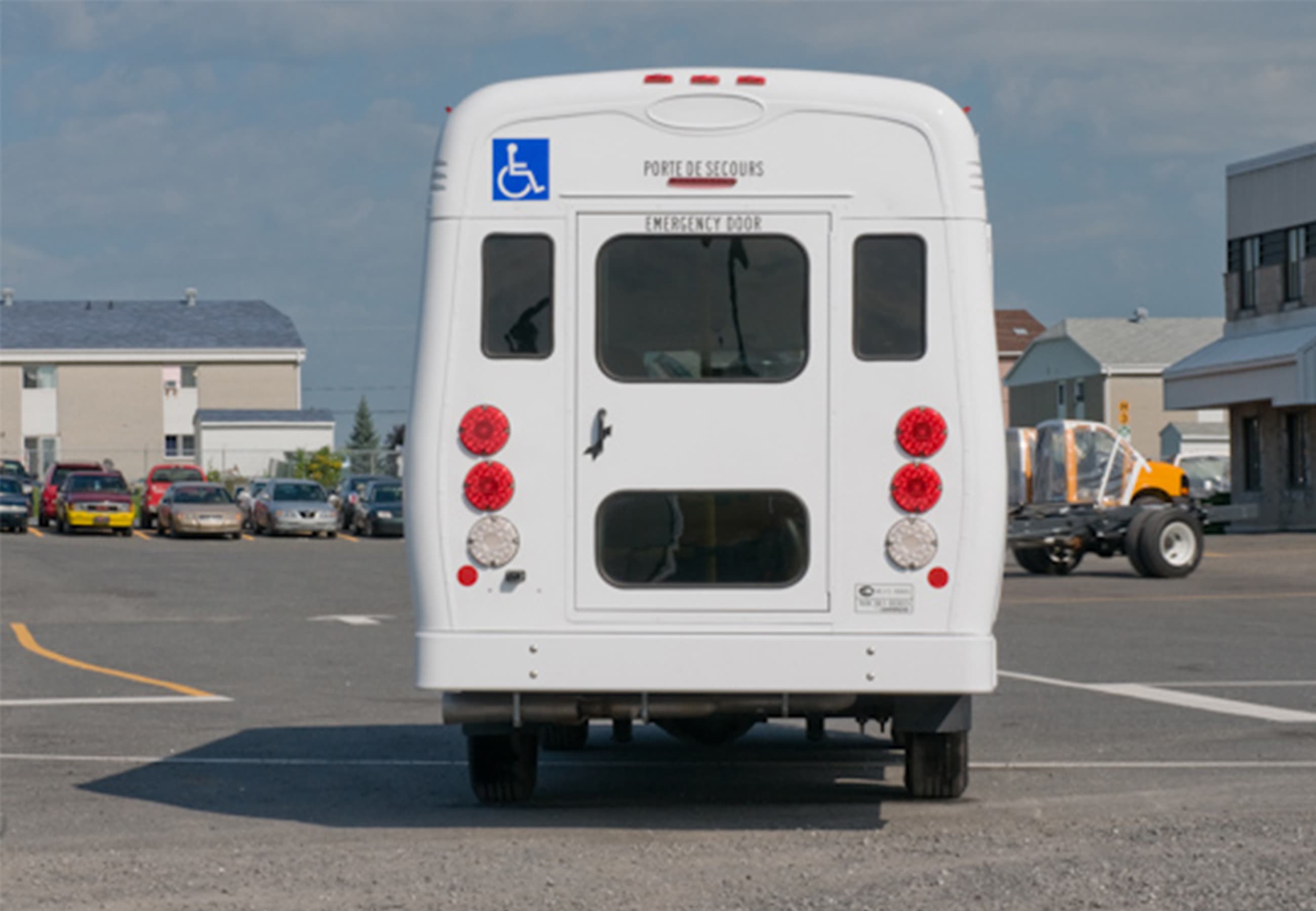

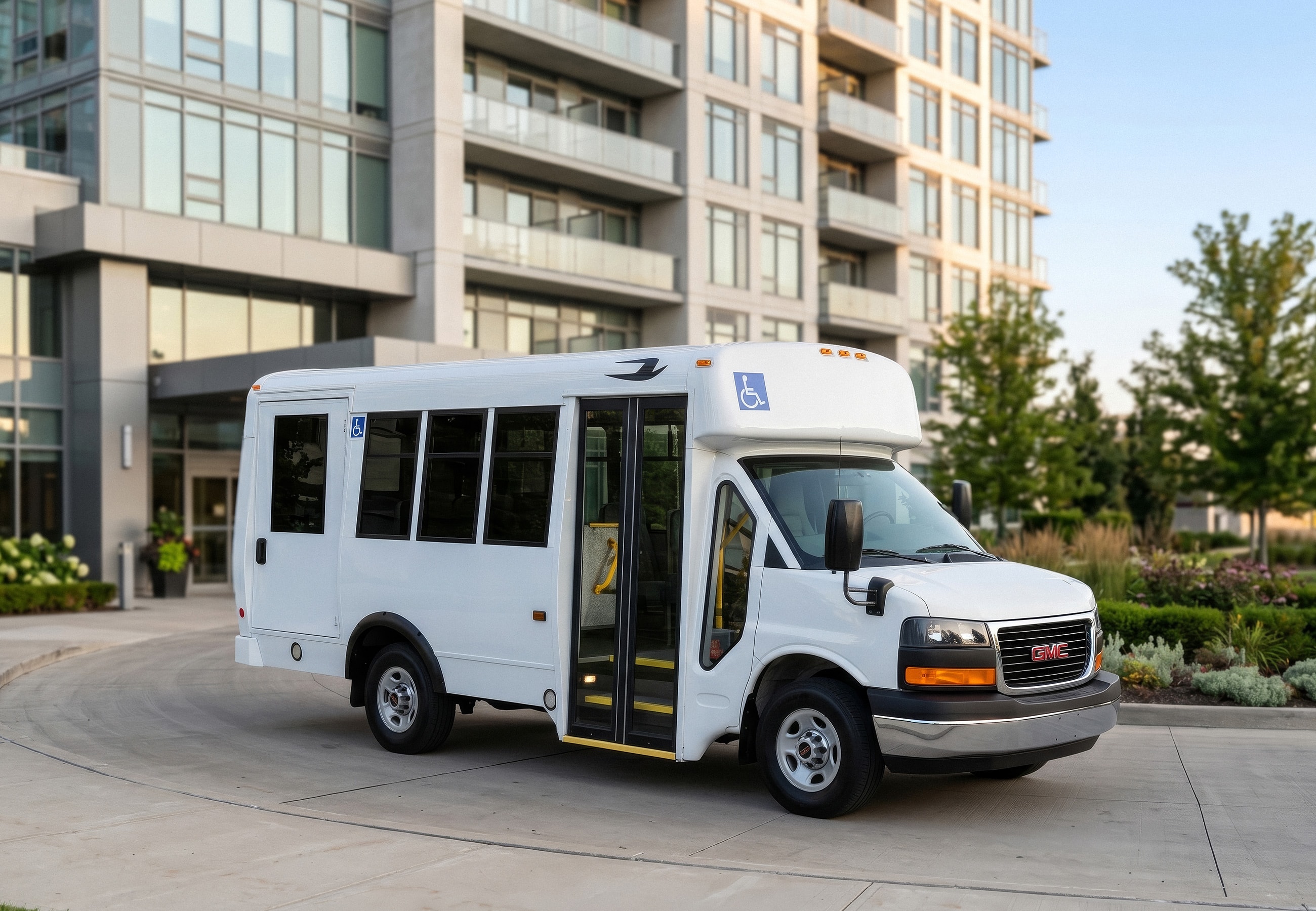

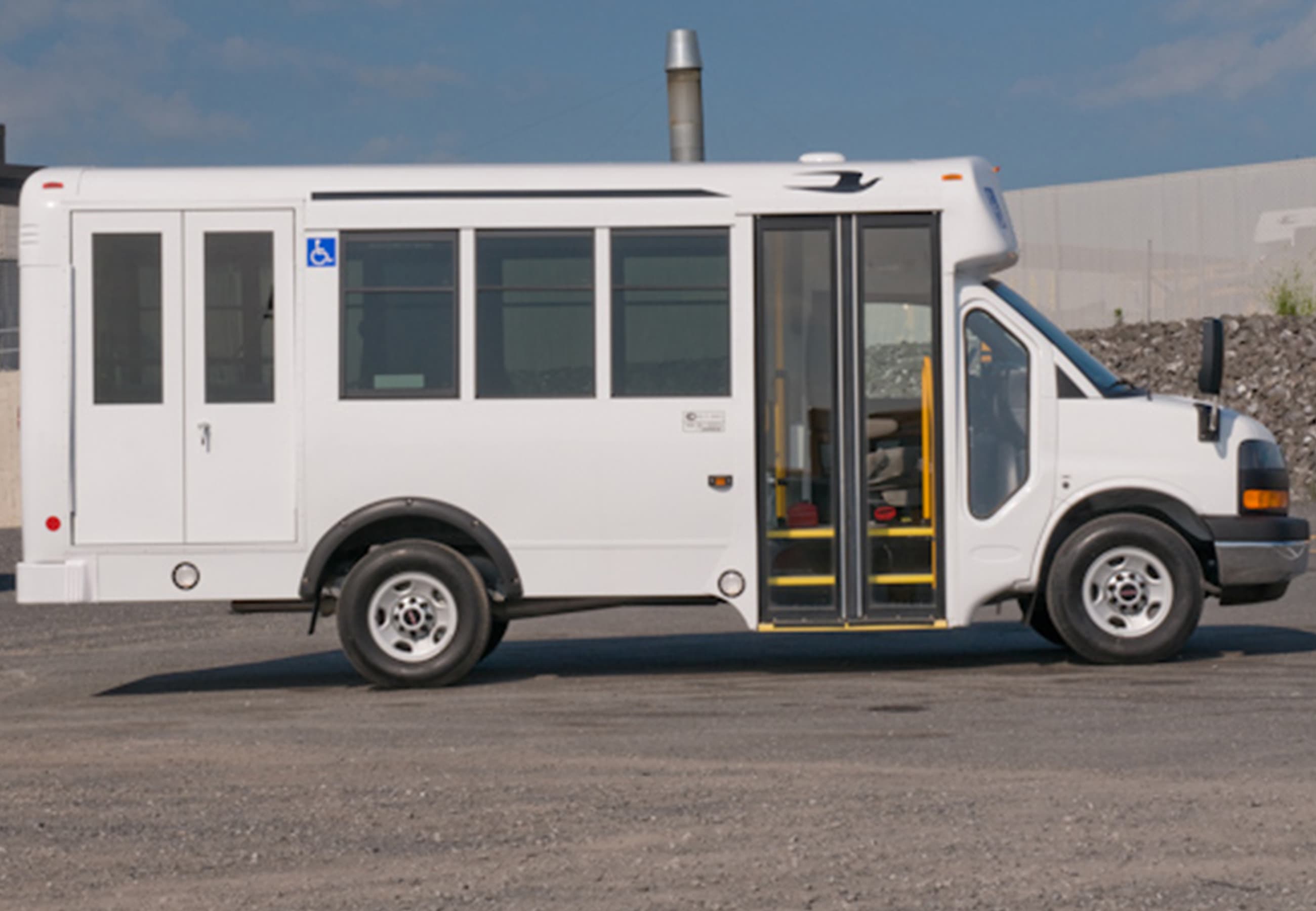

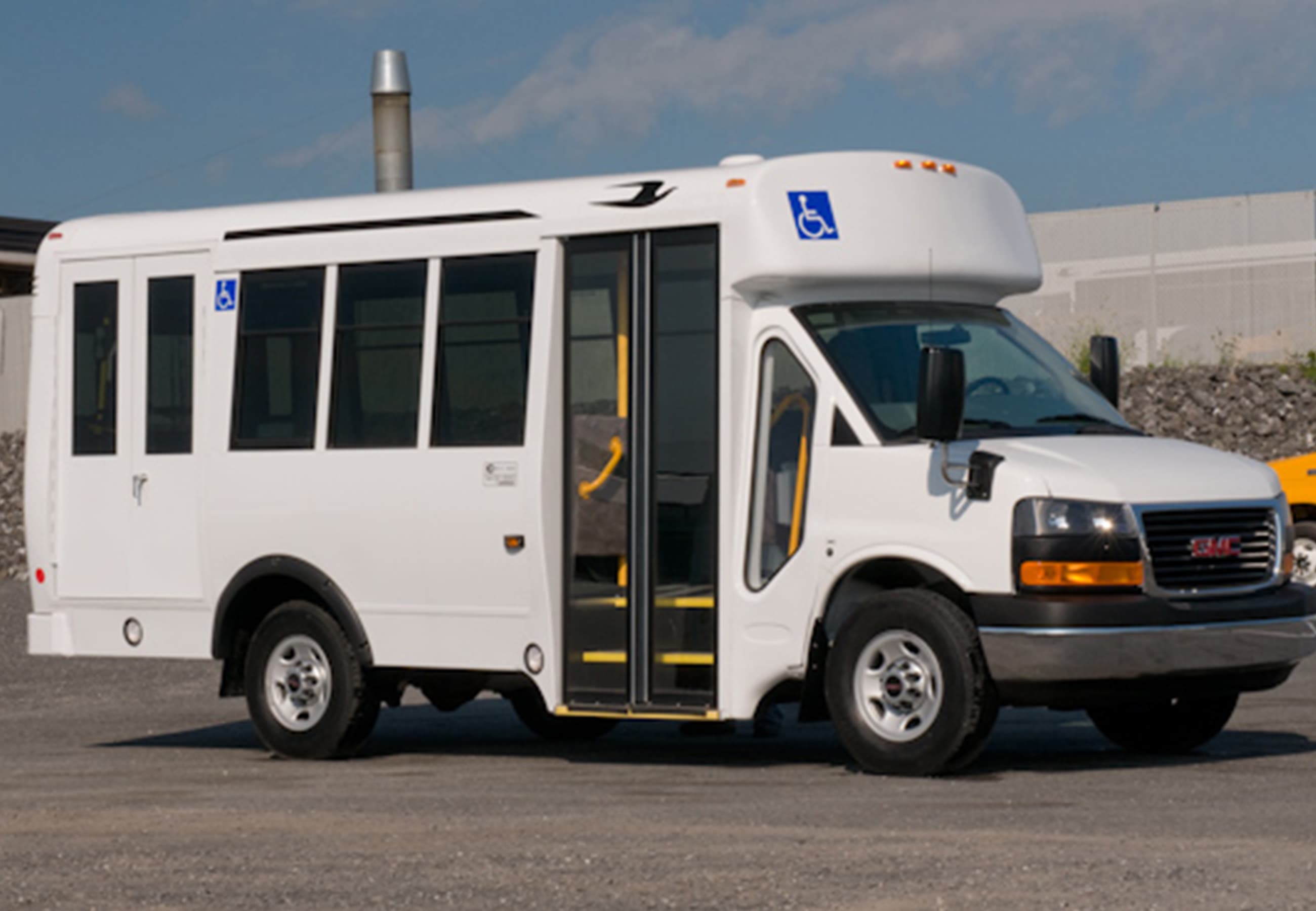

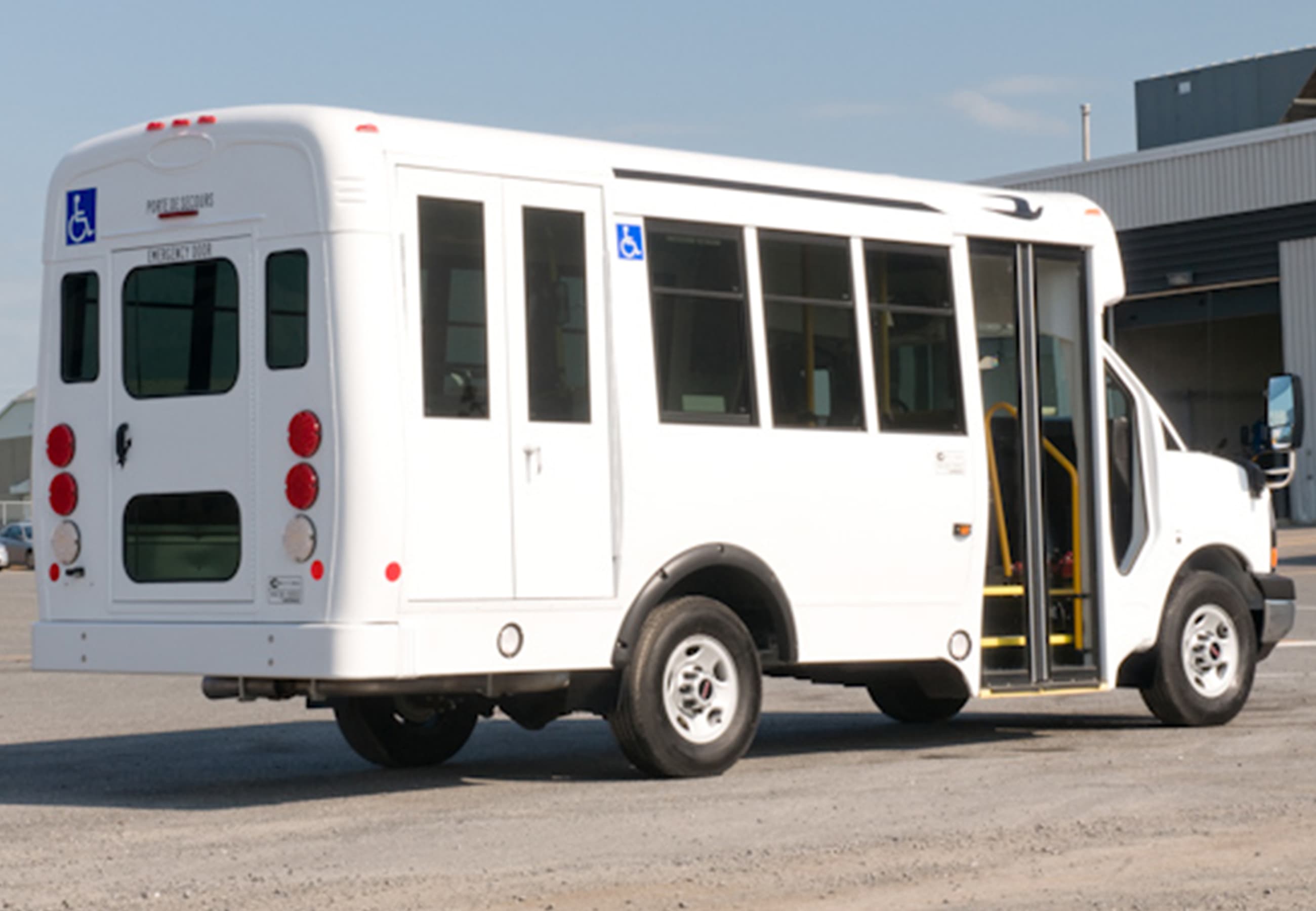

Photo Gallery
See the S-Series
In action
In action
Explore interior and exterior details that make the S-Series the smart choice for commercial fleets.
Customization
Popular Options
Tailor your S-Series to your exact specifications. Click any option to learn more.
- Seating and interior
- Performance and safety
- Accessibility
Configure your S-Series today
Connect with a dealer, configure your ideal vehicle, or speak with a product specialist today.
